SKU: DGE10-UK-DURB

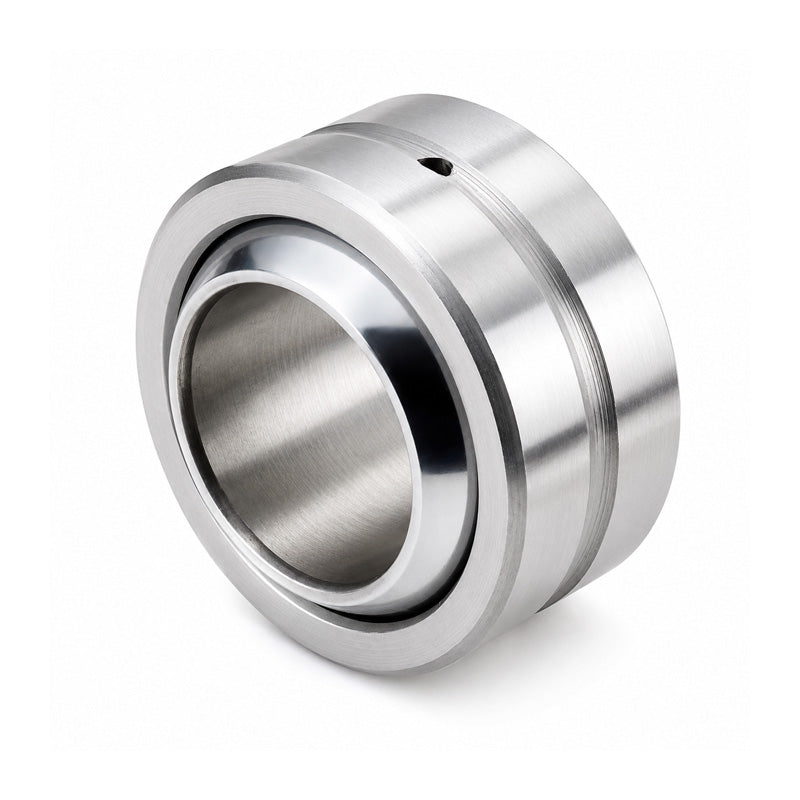

Durbal DGE10-UK Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 10x19x9mm
Durbal DGE10-UK Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 10x19x9mm
Regular price
Rs. 1,178.94
ex VAT
Regular price
Sale price
Rs. 1,178.94
ex VAT
Equivalent to: GE10UK GE10C
In stock
Price Break
10+
Rs. 1,049.26
19+
Rs. 990.31
29+
Rs. 978.52
39+
Rs. 966.73
49+
Rs. 954.94
74+
Rs. 943.15
99+
Rs. 884.21
199+
Rs. 872.42
249+
Rs. 860.63
499+
Rs. 848.84
999+
Rs. 825.26
Couldn't load pickup availability
Description
Description
DURBAL Radial-Spherical Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a heat-treated outer ring lined with bronze - PTFE-composite. Suitable for use with high unilaterally acting loads. Sliding combination - steel with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
Note: Up to size 12 joint ball is hard chromium plated.
Equivalent: GE10UK GE10C
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 10mm
- Material:
- PTFE Lined
Technical
Technical
| d | 10mm |
|---|---|
| d1 | 13mm |
| D | 19mm |
| dk | 16mm |
| B | 9mm |
| C | 6mm |
| rs | 0.3mm |
| r1s | 0.3mm |
| tilt angle α | 12 deg |
| weight | 0.011kg |
| basic load rating dyn C | 8.6 kN |
| basic load rating stat Co | 21 kN |
| radial clearance CN | 4-28 µm |
