SKU: DG18PW-DURB

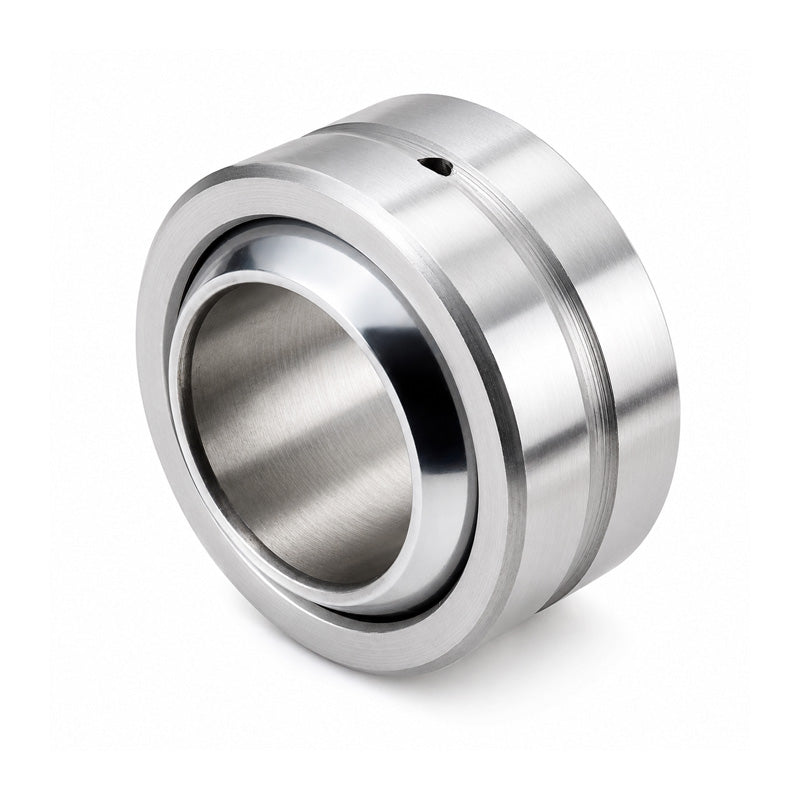

Durbal DG18PW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 18x35x23mm
Durbal DG18PW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 18x35x23mm
Regular price
Rs. 2,669.19
Regular price
Sale price
Rs. 2,669.19
Taxes included.
Equivalent to: GE18PW
Low stock
Price Break
10+
Rs. 2,375.58
19+
Rs. 2,242.12
29+
Rs. 2,215.43
39+
Rs. 2,188.74
49+
Rs. 2,162.04
74+
Rs. 2,135.35
99+
Rs. 2,001.89
199+
Rs. 1,975.20
249+
Rs. 1,948.51
499+
Rs. 1,921.82
999+
Rs. 1,868.43
Description
Description
DURBAL Spherical-Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a bearing brass outer ring lined with bronze - PTFE-composite. For use under high pressure and dynamic loads. Sliding combination: bearing brass with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
Equivalent: GE18PW
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 18mm
- Material:
- PTFE Lined
Technical
Technical
| d | 18mm |
|---|---|
| d1 | 21.8mm |
| D | 35mm |
| dk | 31.7mm |
| B | 23mm |
| C | 16.5mm |
| rs | 0.4mm |
| r1s | 1.5mm |
| tilt angle α | 15 deg |
| weight | 0.125kg |
| basic load rating dyn C | 47 kN |
| basic load rating stat Co | 131 kN |
| radial clearance CN | 5-35 µm |
