SKU: DCL88-NTN

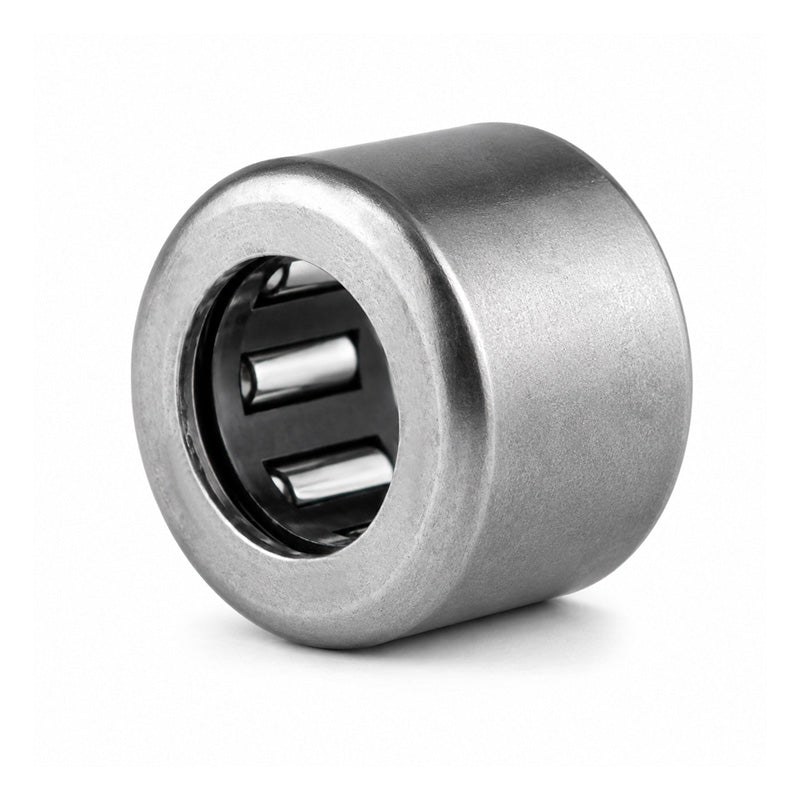

NTN DCL88 Imperial Drawn Cup Open End Needle Roller Bearing 1/2x11/16x1/2 inch
NTN DCL88 Imperial Drawn Cup Open End Needle Roller Bearing 1/2x11/16x1/2 inch
Regular price
Rs. 750.19
Regular price
Sale price
Rs. 750.19
Taxes included.
In stock
Price Break
10+
Rs. 667.67
19+
Rs. 630.16
29+
Rs. 622.66
39+
Rs. 615.16
49+
Rs. 607.65
74+
Rs. 600.15
99+
Rs. 562.64
199+
Rs. 555.14
249+
Rs. 547.64
499+
Rs. 540.14
999+
Rs. 525.13
Description
Description
DCL Needle Roller Bearings: DCL bearings are designed without a cage, allowing the maximum number of needle rollers to be fitted within the outer ring. This full complement structure provides significantly higher load capacity compared to caged designs, while maintaining a compact, space-saving profile. Well-suited for use in gearboxes, transmissions, and other machinery where space is restricted and high radial load support is essential.
Benefits: Compact design, reliable performance, superior load capacity
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Fw - Outside diameter | 12.7mm |
|---|---|
| D - Outside diameter | 17.463mm |
| C - Width | 12.7mm |
| Lubrication hole on outer ring? | No |
| Radial clearance | CN |
| Precision class | P0 |
| N - Grease lubrication limit speed | 13000 tr/min |
| N - Oil lubrication limit speed | 19000 tr/min |
| Cr - Dynamic load rating | 6.7 kN |
| C0r - Static load rating | 8.5 kN |
| Tmin - Minimum operating temperature | -40 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
