SKU: D1460-035

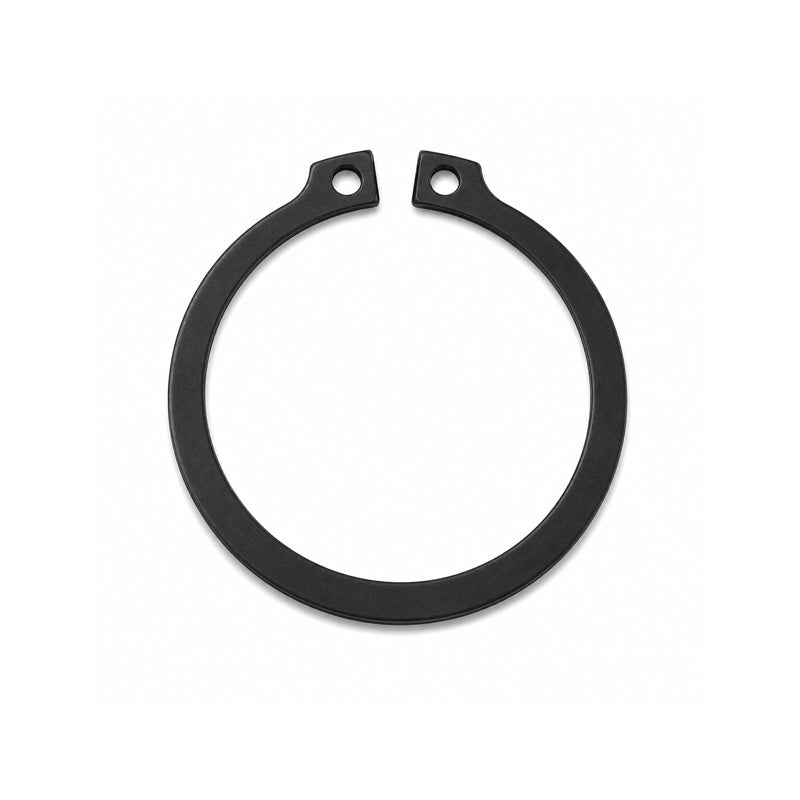

Heavy Duty External Circlip for 35mm Shaft Diameter Un-Sprung Diameter 32.2mm
Heavy Duty External Circlip for 35mm Shaft Diameter Un-Sprung Diameter 32.2mm
Regular price
Rs. 108.82
Regular price
Sale price
Rs. 108.82
Taxes included.
Equivalent to: D1460-035
In stock
Price Break
10+
Rs. 59.85
20+
Rs. 45.70
50+
Rs. 32.65
100+
Rs. 27.21
500+
Rs. 21.76
1000+
Rs. 16.32
Description
Description
Heavy Duty External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently, it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers.
Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil
DIN 471
Benefits: Cost effective replacement, durable, removable.
Equivalent: D1460-035
Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil
DIN 471
Benefits: Cost effective replacement, durable, removable.
Equivalent: D1460-035
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 32.2mm
- Material:
- Sprung Carbon Steel
- Shaft Size:
- 35mm
- Thickness:
- 2.5mm
- Groove Diameter:
- 33mm
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size | 35mm |
| Thickness s | 2.5mm |
| Thickness Tolerance | -0.07 |
| Unstressed Diameter d3 | 32.2mm |
| Clearance on Shaft | 48.9mm |
| Beam b | 4.2mm |
| Lug a | 6.7mm |
| d5 | 2.5mm |
| Ring Load Carrying Capacity | 86kN |
| --- | Groove Details |
| Groove Diameter | 33mm |
| Groove Tolerance | +0.00-0.25mm |
| Groove Width | 2.65mm |
| Edge Margin | 3mm |
| Groove Load Capacity | 17.8kN |
