SKU: CUC211

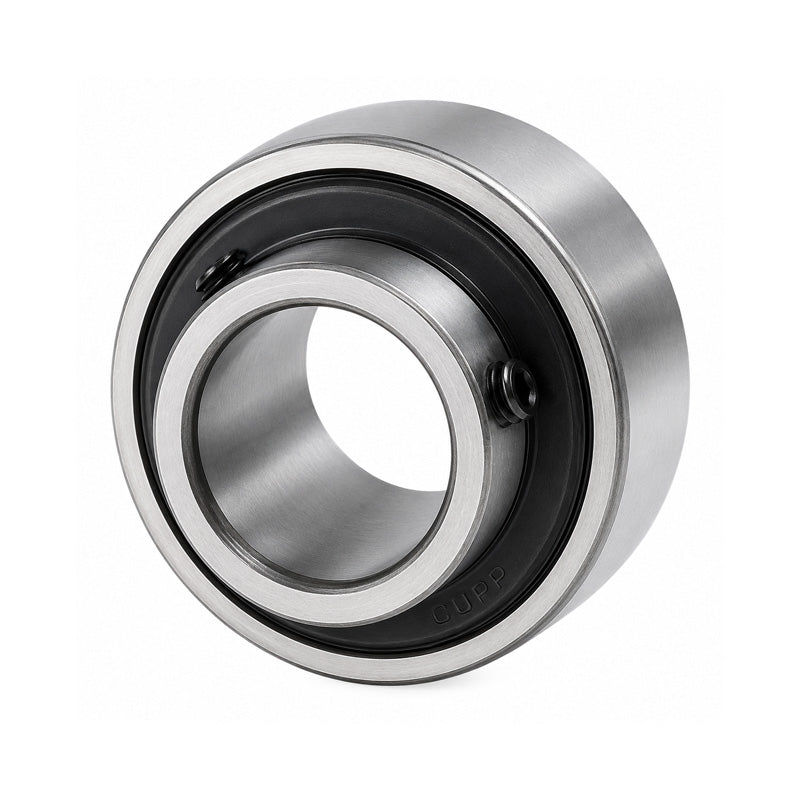

CUC211 Metric Cylindrical Bearing Insert with 55mm Bore 100mm Outside Dia
CUC211 Metric Cylindrical Bearing Insert with 55mm Bore 100mm Outside Dia
Regular price
Rs. 2,987.96
Regular price
Sale price
Rs. 2,987.96
Taxes included.
Equivalent to: UR211 RB211
In stock
Price Break
10+
Rs. 2,659.28
19+
Rs. 2,509.89
29+
Rs. 2,480.01
39+
Rs. 2,450.13
49+
Rs. 2,420.25
74+
Rs. 2,390.37
99+
Rs. 2,240.97
199+
Rs. 2,211.09
249+
Rs. 2,181.21
499+
Rs. 2,151.33
999+
Rs. 2,091.57
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR211 RB211
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 25mm |
| N | 22.2mm |
| M | 33.4mm |
| G | 10mm |
| ds | M10x1, 3/8-24UNF |
| Dynamic Load | 43500 N |
| Static Load | 29200 N |
| Weight | 1.11 kg |
