SKU: CUC210-SNR

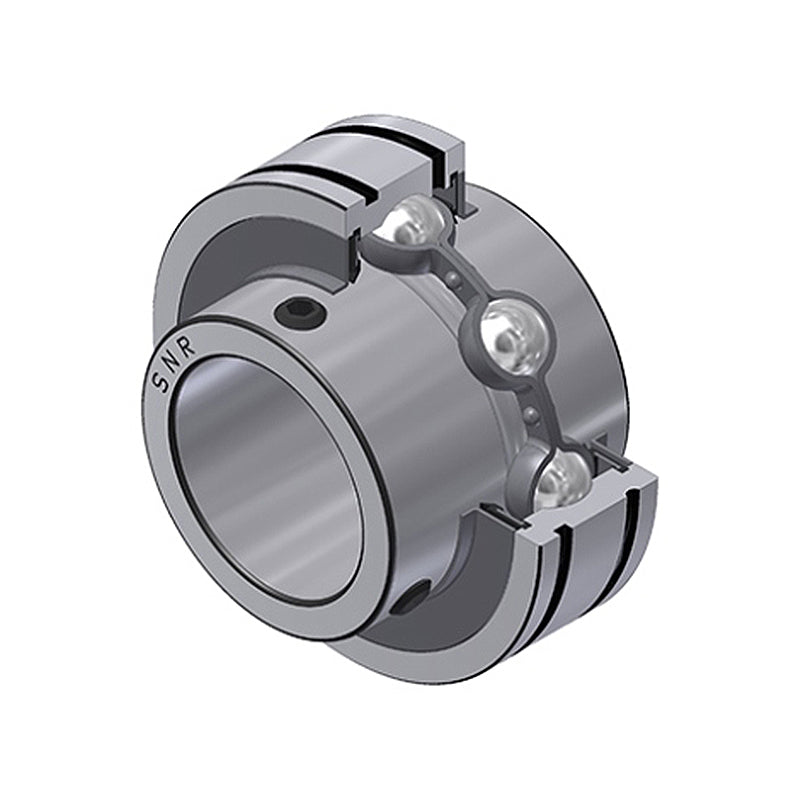

SNR CUC210 Metric Full Width Grooved Parallel Outer Bearing Insert 50mm Bore 90mm Outside Diameter with Grub Screws - Allow 2-3 Days
SNR CUC210 Metric Full Width Grooved Parallel Outer Bearing Insert 50mm Bore 90mm Outside Diameter with Grub Screws - Allow 2-3 Days
Regular price
Rs. 3,929.28
ex VAT
Regular price
Sale price
Rs. 3,929.28
ex VAT
In stock
Price Break
10+
Rs. 3,497.06
19+
Rs. 3,300.60
29+
Rs. 3,261.30
39+
Rs. 3,222.01
49+
Rs. 3,182.72
74+
Rs. 3,143.42
99+
Rs. 2,946.96
199+
Rs. 2,907.67
249+
Rs. 2,868.37
499+
Rs. 2,829.08
999+
Rs. 2,750.50
Couldn't load pickup availability
Description
Description
SNR CUC Full Width Parallel Outer Bearing Insert with Grub Screws: This bearing insert is tailored for applications requiring axial fixation and lubrication capabilities, not suitable for standard housings with spherical bearing seats. It includes a cylindrical outer ring with a snap ring groove and lubrication hole. Each steel insert is equipped with a single lip seal and slinger on both sides, featuring a wide inner ring design for enhanced stability and performance.
Benefits: High-quality brand, high-performance, precision-engineered
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M10x1.25
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 51.6mm
- Style:
- CUC
- Type:
- Parallel Outer
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| C | 24mm |
| B | 51.6mm |
| S | 19mm |
| a | 3.7mm |
| b | 2.7mm |
| N1 | 86.79mm |
| m | 9mm |
| C1 | 5.6mm |
| r min | 1.1mm |
| G | M10x1.25 |
| Wrench Size | 5mm |
| Set screw torque | 22 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 35.1kN |
| Static load rating C0 | 23.2kN |
| Weight | 0.8kg |
