SKU: CUC209-27-SNR

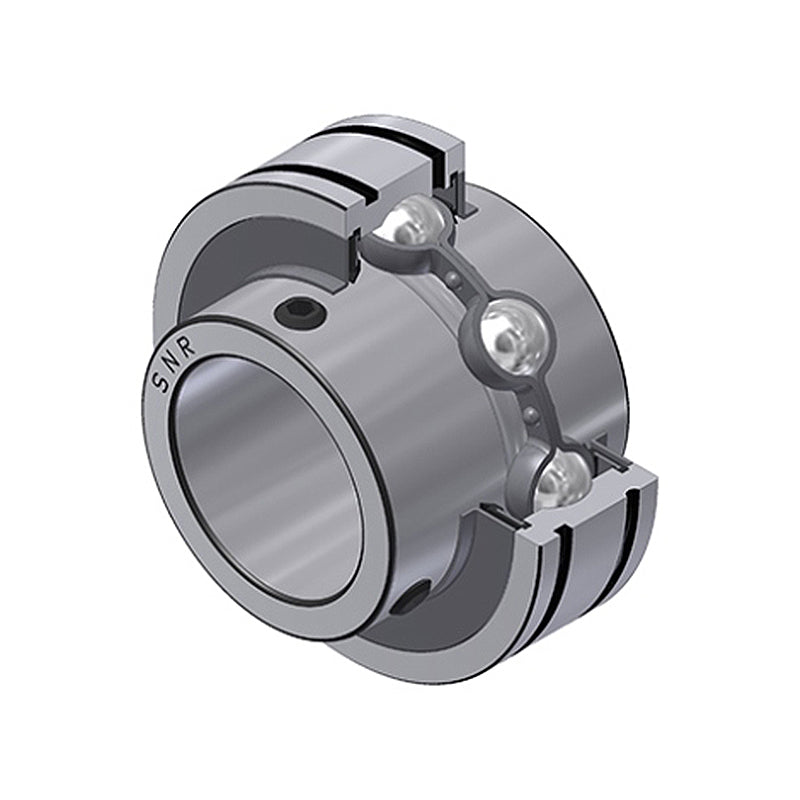

SNR CUC209-27 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-11/16 inch Bore 85mm Outside Diameter with Grub Screws - Allow 2-3 Days
SNR CUC209-27 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-11/16 inch Bore 85mm Outside Diameter with Grub Screws - Allow 2-3 Days
Regular price
Rs. 3,368.14
ex VAT
Regular price
Sale price
Rs. 3,368.14
ex VAT
In stock
Price Break
10+
Rs. 2,997.64
19+
Rs. 2,829.24
29+
Rs. 2,795.56
39+
Rs. 2,761.87
49+
Rs. 2,728.19
74+
Rs. 2,694.51
99+
Rs. 2,526.11
199+
Rs. 2,492.42
249+
Rs. 2,458.74
499+
Rs. 2,425.06
999+
Rs. 2,357.70
Couldn't load pickup availability
Description
Description
SNR CUC Full Width Parallel Outer Bearing Insert with Grub Screws: This bearing insert is tailored for applications requiring axial fixation and lubrication capabilities, not suitable for standard housings with spherical bearing seats. It includes a cylindrical outer ring with a snap ring groove and lubrication hole. Each steel insert is equipped with a single lip seal and slinger on both sides, featuring a wide inner ring design for enhanced stability and performance.
Benefits: High-quality brand, high-performance, precision-engineered
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- 5/16-24UNF
- Inside Diameter:
- 42.863mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 85mm
- Width:
- 49.2mm
- Style:
- CUC
- Type:
- Parallel Outer
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| d | 42.863mm |
| D | 85mm |
| C | 22mm |
| B | 49.2mm |
| S | 19mm |
| a | 3.5mm |
| b | 1.9mm |
| N1 | 81.81mm |
| m | 8mm |
| C1 | 5.1mm |
| r min | 1.1mm |
| G | 5/16-24UNF |
| Wrench Size | 5/32 inch |
| Set screw torque | 8 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 31.9kN |
| Static load rating C0 | 20.8kN |
| Weight | 0.7kg |
