SKU: CUC207-20

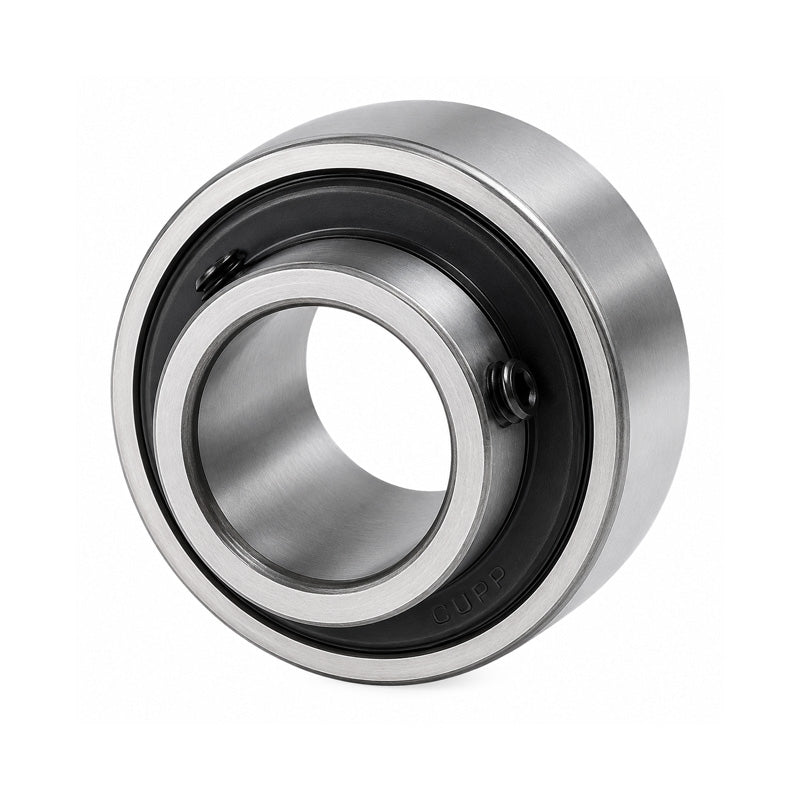

CUC207-20 Imperial Cylindrical Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia - Allow 2-3 Days
CUC207-20 Imperial Cylindrical Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 990.87
Regular price
Sale price
Rs. 990.87
Taxes included.
Equivalent to: UR207-20 RB207-20
In stock
Price Break
5+
Rs. 980.96
10+
Rs. 941.33
20+
Rs. 921.51
50+
Rs. 891.78
100+
Rs. 871.97
500+
Rs. 822.42
1000+
Rs. 693.61
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR207-20 RB207-20
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| N | 17.5mm |
| M | 25.4mm |
| G | 7mm |
| ds | M8x1, 5/16-24UNF |
| Dynamic Load | 25700 N |
| Static Load | 15300 N |
| Weight | 0.54 kg |
