SKU: CUC206

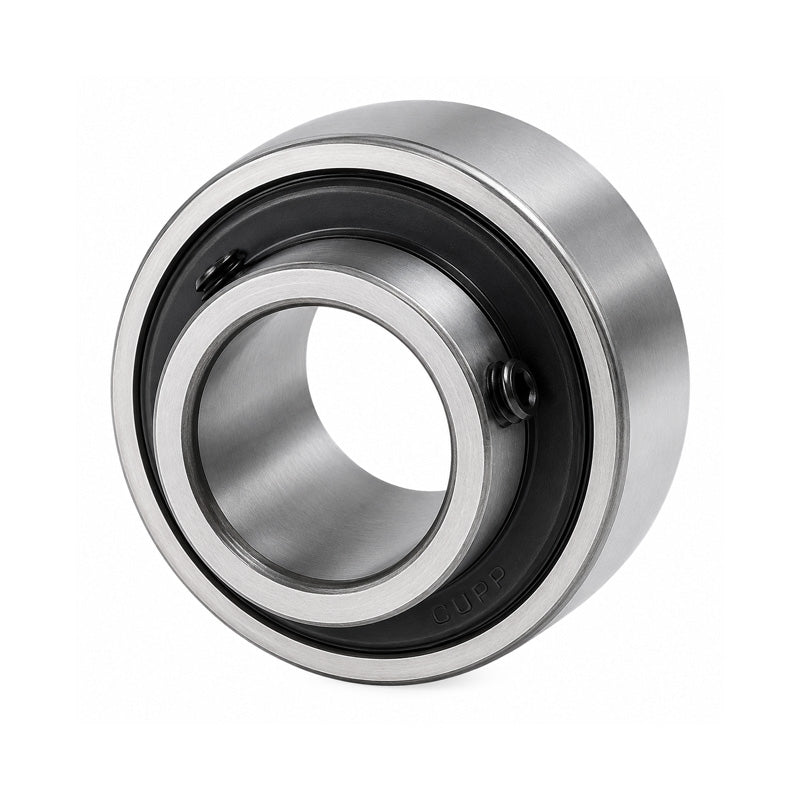

CUC206 Metric Cylindrical Bearing Insert with 30mm Bore 62mm Outside Dia
CUC206 Metric Cylindrical Bearing Insert with 30mm Bore 62mm Outside Dia
Regular price
Rs. 988.30
Regular price
Sale price
Rs. 988.30
Taxes included.
Equivalent to: UR206 RB206
In stock
Price Break
10+
Rs. 879.59
19+
Rs. 830.17
29+
Rs. 820.29
39+
Rs. 810.41
49+
Rs. 800.52
74+
Rs. 790.64
99+
Rs. 741.23
199+
Rs. 731.34
249+
Rs. 721.46
499+
Rs. 711.58
999+
Rs. 691.81
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR206 RB206
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 19mm |
| N | 15.9mm |
| M | 22.2mm |
| G | 5mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 19500 N |
| Static Load | 11300 N |
| Weight | 0.32 kg |
