SKU: CUC205-16

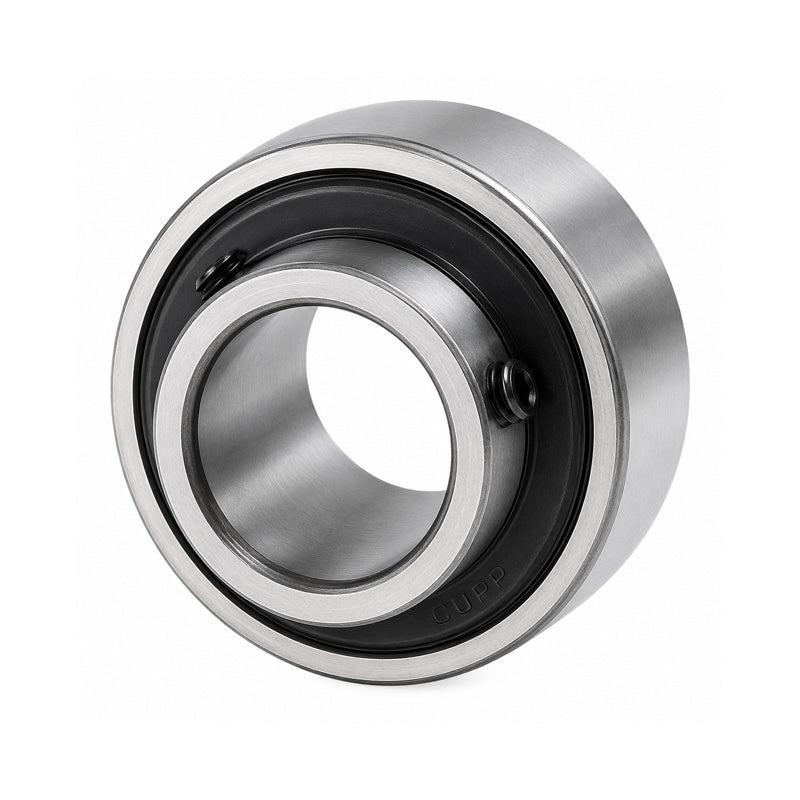

CUC205-16 Imperial Cylindrical Bearing Insert with 1 inch Bore 52mm Outside Dia
CUC205-16 Imperial Cylindrical Bearing Insert with 1 inch Bore 52mm Outside Dia
Regular price
Rs. 901.77
ex VAT
Regular price
Sale price
Rs. 901.77
ex VAT
Equivalent to: UR205-16 RB205-16
Low stock
Price Break
10+
Rs. 802.58
19+
Rs. 757.49
29+
Rs. 748.47
39+
Rs. 739.45
49+
Rs. 730.43
74+
Rs. 721.42
99+
Rs. 676.33
199+
Rs. 667.31
249+
Rs. 658.29
499+
Rs. 649.27
999+
Rs. 631.24
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR205-16 RB205-16
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 (1) inch
- Outside Diameter:
- 52mm
- Type:
- Parallel Outer
Technical
Technical
| d | 1 inch |
|---|---|
| D | 52mm |
| Bi | 34.1mm |
| Be | 17mm |
| N | 14.3mm |
| M | 19.8mm |
| G | 5mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 140000 N |
| Static Load | 7850 N |
| Weight | 0.2 kg |
