SKU: CUC205-14

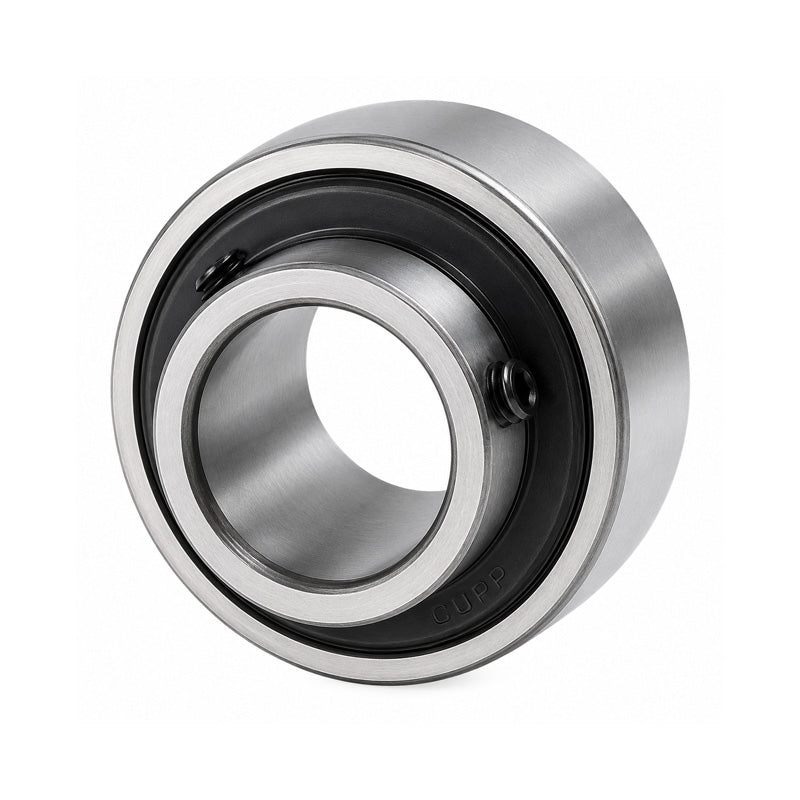

CUC205-14 Imperial Cylindrical Bearing Insert with 7/8 inch Bore 52mm Outside Dia - Allow 2-3 Days
CUC205-14 Imperial Cylindrical Bearing Insert with 7/8 inch Bore 52mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 706.66
Regular price
Sale price
Rs. 706.66
Taxes included.
Equivalent to: UR205-14 RB205-14
In stock
Price Break
5+
Rs. 699.59
10+
Rs. 671.33
20+
Rs. 657.19
50+
Rs. 635.99
100+
Rs. 621.86
500+
Rs. 586.53
1000+
Rs. 494.66
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR205-14 RB205-14
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
Technical
Technical
| d | 7/8 inch |
|---|---|
| D | 52mm |
| Bi | 34.1mm |
| Be | 17mm |
| N | 14.3mm |
| M | 19.8mm |
| G | 5mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 140000 N |
| Static Load | 7850 N |
| Weight | 0.23 kg |
