SKU: CUC205

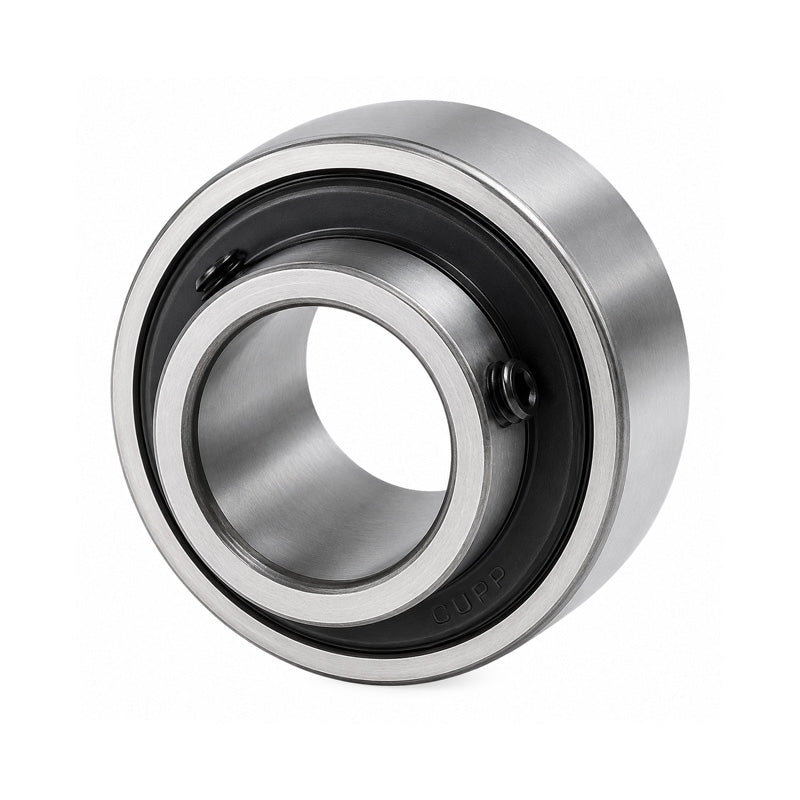

CUC205 Metric Cylindrical Bearing Insert with 25mm Bore 52mm Outside Dia
CUC205 Metric Cylindrical Bearing Insert with 25mm Bore 52mm Outside Dia
Regular price
Rs. 838.52
Regular price
Sale price
Rs. 838.52
Taxes included.
Equivalent to: UR205 RB205
In stock
Price Break
10+
Rs. 746.28
19+
Rs. 704.36
29+
Rs. 695.97
39+
Rs. 687.59
49+
Rs. 679.20
74+
Rs. 670.82
99+
Rs. 628.89
199+
Rs. 620.50
249+
Rs. 612.12
499+
Rs. 603.73
999+
Rs. 586.96
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR205 RB205
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| Bi | 34.1mm |
| Be | 17mm |
| N | 14.3mm |
| M | 19.8mm |
| G | 5mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 140000 N |
| Static Load | 7850 N |
| Weight | 0.2 kg |
