SKU: CUC204-12

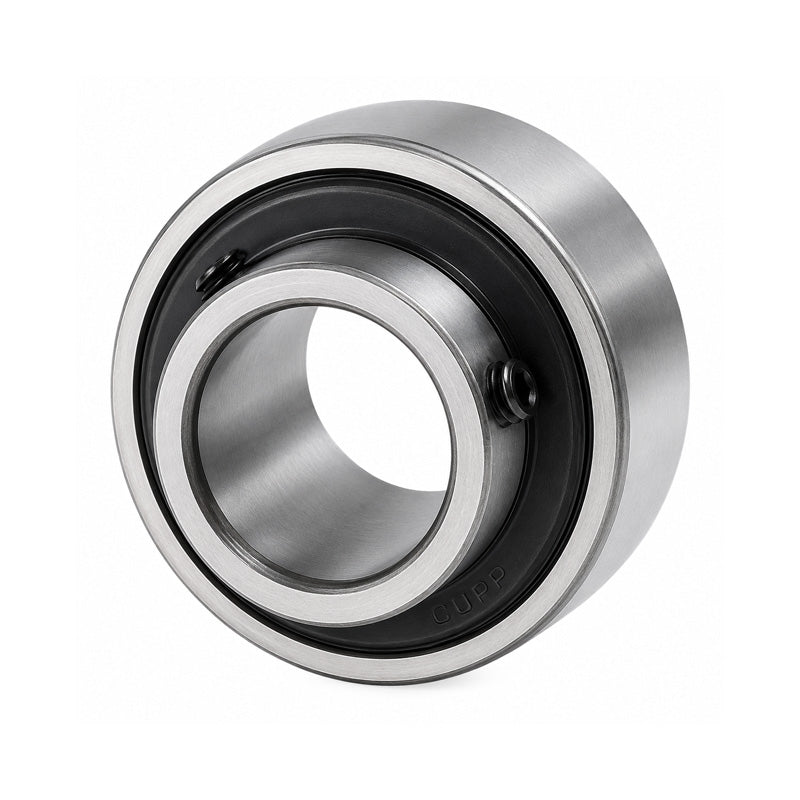

CUC204-12 Imperial Cylindrical Bearing Insert with 3/4 inch Bore 47mm Outside Dia
CUC204-12 Imperial Cylindrical Bearing Insert with 3/4 inch Bore 47mm Outside Dia
Regular price
Rs. 803.96
Regular price
Sale price
Rs. 803.96
Taxes included.
Equivalent to: UR204-12 RB204-12
In stock
Price Break
10+
Rs. 715.52
19+
Rs. 675.33
29+
Rs. 667.29
39+
Rs. 659.25
49+
Rs. 651.21
74+
Rs. 643.17
99+
Rs. 602.97
199+
Rs. 594.93
249+
Rs. 586.89
499+
Rs. 578.85
999+
Rs. 562.77
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR204-12 RB204-12
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
Technical
Technical
| d | 3/4 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| N | 12.7mm |
| M | 18.3mm |
| G | 4.8mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 12800 N |
| Static Load | 6650 N |
| Weight | 0.16 kg |
