SKU: CSK.8P.EU

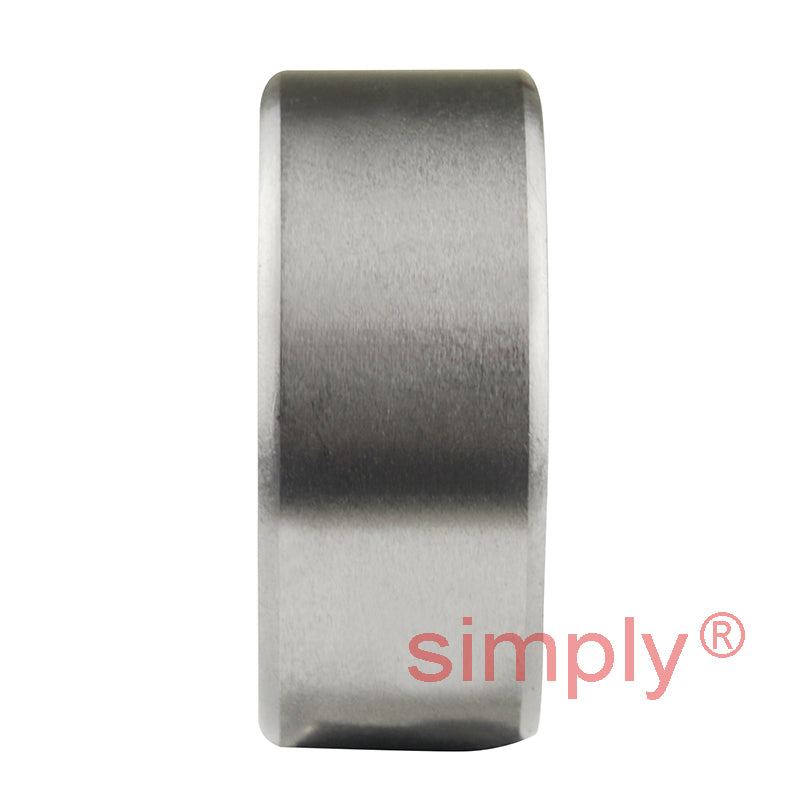

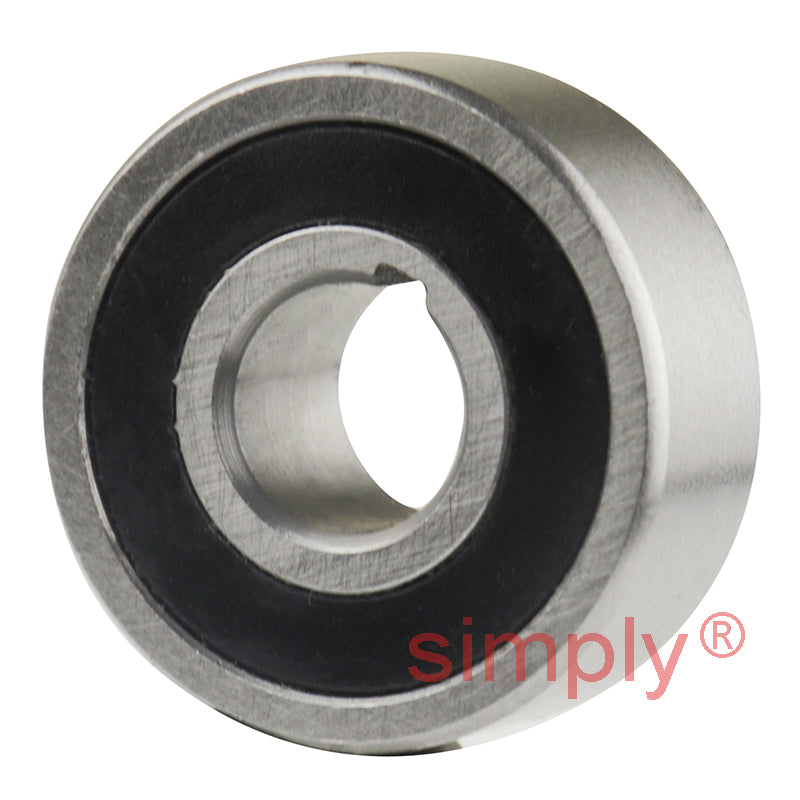

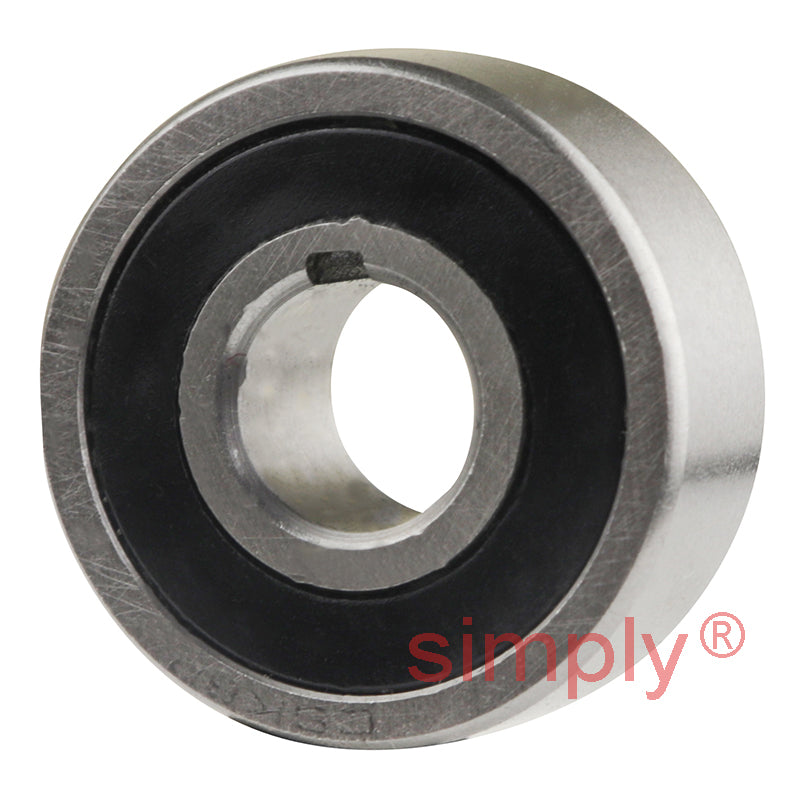

CSK8P 8mm Sprag Clutch One Way Bearing with Internal Keyway 8x22x9mm
CSK8P 8mm Sprag Clutch One Way Bearing with Internal Keyway 8x22x9mm
Regular price
Rs. 2,998.20
Regular price
Sale price
Rs. 2,998.20
Taxes included.
In stock
Price Break
10+
Rs. 2,668.40
19+
Rs. 2,518.49
29+
Rs. 2,488.51
39+
Rs. 2,458.52
49+
Rs. 2,428.54
74+
Rs. 2,398.56
99+
Rs. 2,248.65
199+
Rs. 2,218.67
249+
Rs. 2,188.69
499+
Rs. 2,158.70
999+
Rs. 2,098.74
Description
Description
|
CSK Series: This range of clutches can be used as freewheels and can be used in backstop, overrunning or indexing applications. Freewheel bearings are characterised by their ability to turn in one direction only and thus transmit torque whilst having a zero backlash. They are supplied filled with grease and are low maintenance. The torque is transmitted on the inner and outer race by an interference fit into a rigid housing and onto the shaft by an internal key way. The tolerance for the housing fit is N6. Operating temperature range: minus 40 deg F to plus 212 deg F or minus 40 deg C to plus 100 deg C Benefits: Cost effective replacement clutch bearing, low maintenance, Internally keyed |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 22mm
- Width:
- 9mm
Technical
Technical
| d | 8mm |
|---|---|
| D | 22mm |
| L | 9mm |
| n max | 15000 rpm |
| a min | 2mm |
| k min | 0.8mm |
| Dynamic load C | 3.28 kN |
| Static load Co | 0.86 kN |
| Weight | 0.015 kg |
| Drag Torque Tr | 3.5 Ncm |
