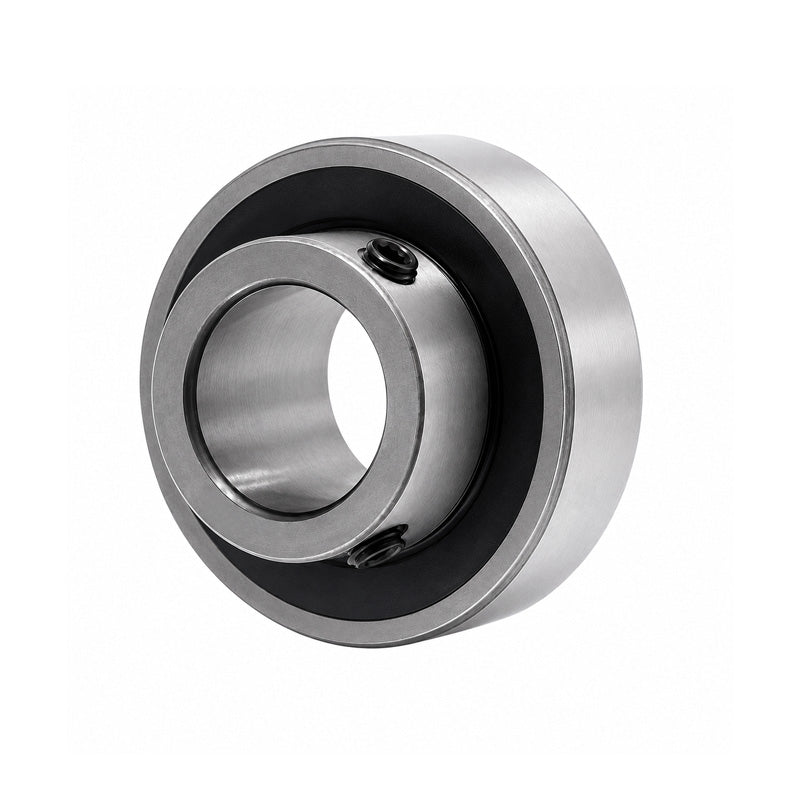

• CSB210 Metric Bearing Insert with 50mm Bore 90mm Outside Dia
1 1

SKU: CSB.210

CSB210 Metric Bearing Insert with 50mm Bore 90mm Outside Dia

CSB210 Metric Bearing Insert with 50mm Bore 90mm Outside Dia
Rs. 3,260.64
Rs. 3,260.64
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 2,901.97
19+ Rs. 2,738.94
29+ Rs. 2,706.33
39+ Rs. 2,673.72
49+ Rs. 2,641.12
74+ Rs. 2,608.51
99+ Rs. 2,445.48
199+ Rs. 2,412.87
249+ Rs. 2,380.27
499+ Rs. 2,347.66
999+ Rs. 2,282.45
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers.
Benefits: Cost effective bearing insert, grub screw fixing, flat back design, parallel outer

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
90mm
Style:
CSB

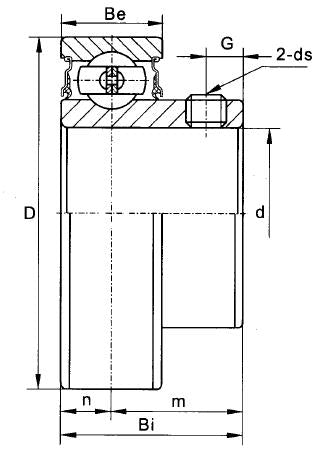

Technical
d 50mm
Be 20mm
D 90mm
Bi 41.6mm
n 10mm
m 31.6mm
G 9.2mm
h 6.5mm
Grub screw M8X1.0
Weight 0.83 kg
Dynamic load 3580 kgf
Static load 2300 kgf
