SKU: CSB.207

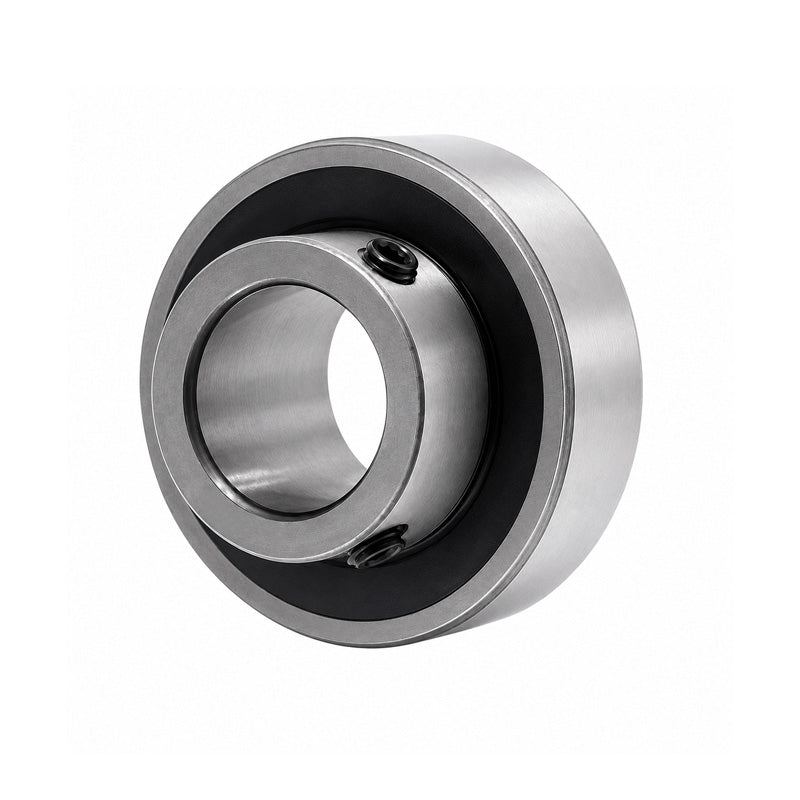

CSB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
CSB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
Rs. 952.46
Regular price
Sale price
Rs. 952.46
Taxes included.
In stock
Price Break
10+
Rs. 847.69
19+
Rs. 800.07
29+
Rs. 790.54
39+
Rs. 781.02
49+
Rs. 771.49
74+
Rs. 761.97
99+
Rs. 714.35
199+
Rs. 704.82
249+
Rs. 695.30
499+
Rs. 685.77
999+
Rs. 666.72
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- CSB
Technical
Technical
| d | 35mm |
|---|---|
| Be | 17mm |
| D | 72mm |
| Bi | 32mm |
| n | 8.5mm |
| m | 23.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | M8X1.0 |
| Weight | 0.42 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
