SKU: CSB.205-16

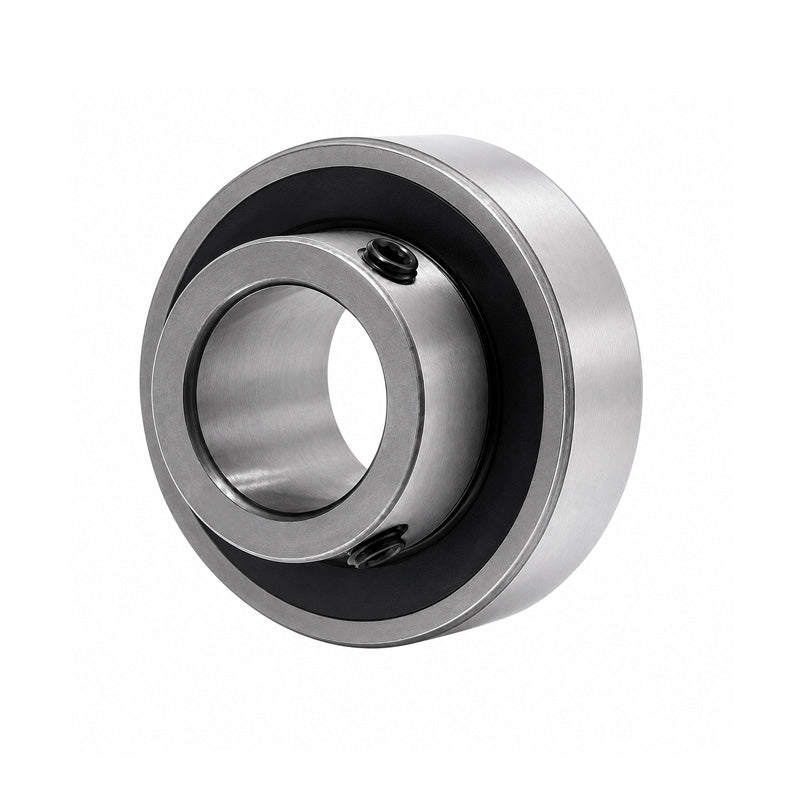

CSB205-16 Imperial Bearing Insert with 1 inch Bore 52mm Outside Dia
CSB205-16 Imperial Bearing Insert with 1 inch Bore 52mm Outside Dia
Regular price
Rs. 847.48
Regular price
Sale price
Rs. 847.48
Taxes included.
In stock
Price Break
10+
Rs. 754.26
19+
Rs. 711.88
29+
Rs. 703.41
39+
Rs. 694.93
49+
Rs. 686.46
74+
Rs. 677.98
99+
Rs. 635.61
199+
Rs. 627.14
249+
Rs. 618.66
499+
Rs. 610.19
999+
Rs. 593.24
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 52mm
- Style:
- CSB
Technical
Technical
| d | 1 inch |
|---|---|
| Be | 15mm |
| D | 52mm |
| Bi | 27mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| Grub screw | 1/4"X28 UNF |
| Weight | 0.18 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
