SKU: CSB.204-12

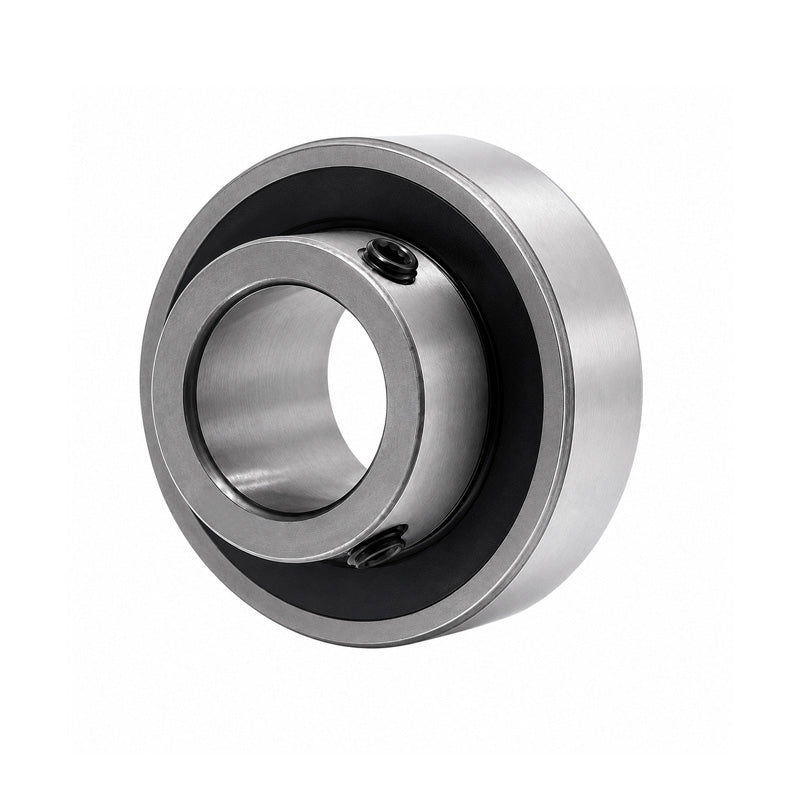

CSB204-12 Imperial Bearing Insert with 3/4 inch Bore 47mm Outside Dia
CSB204-12 Imperial Bearing Insert with 3/4 inch Bore 47mm Outside Dia
Regular price
Rs. 1,040.97
ex VAT
Regular price
Sale price
Rs. 1,040.97
ex VAT
In stock
Price Break
10+
Rs. 926.46
19+
Rs. 874.41
29+
Rs. 864.01
39+
Rs. 853.60
49+
Rs. 843.19
74+
Rs. 832.78
99+
Rs. 780.73
199+
Rs. 770.32
249+
Rs. 759.91
499+
Rs. 749.50
999+
Rs. 728.68
Couldn't load pickup availability
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- CSB
- Type:
- Parallel Outer
Technical
Technical
| d | 3/4 inch |
|---|---|
| Be | 14mm |
| D | 47mm |
| Bi | 25mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| Grub screw | 1/4"X28 UNF |
| Weight | 0.15 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
