SKU: CSB.202-10

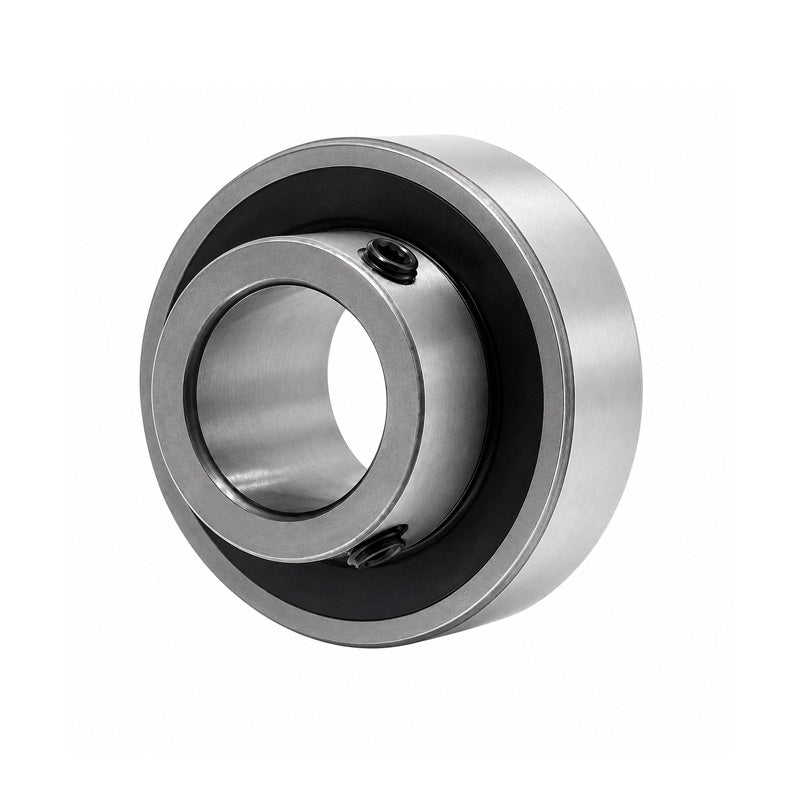

CSB202-10 Imperial Bearing Insert with 5/8 inch Bore 40mm Outside Dia
CSB202-10 Imperial Bearing Insert with 5/8 inch Bore 40mm Outside Dia
Regular price
Rs. 1,087.83
ex VAT
Regular price
Sale price
Rs. 1,087.83
ex VAT
In stock
Price Break
10+
Rs. 968.17
19+
Rs. 913.78
29+
Rs. 902.90
39+
Rs. 892.02
49+
Rs. 881.14
74+
Rs. 870.26
99+
Rs. 815.87
199+
Rs. 804.99
249+
Rs. 794.12
499+
Rs. 783.24
999+
Rs. 761.48
Couldn't load pickup availability
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 40mm
- Style:
- CSB
- Type:
- Parallel Outer
Technical
Technical
| d | 5/8 inch |
|---|---|
| Be | 12mm |
| D | 40mm |
| Bi | 22mm |
| n | 6mm |
| m | 16mm |
| G | 4.5mm |
| h | 3.6mm |
| Grub screw | 10-32 UNF |
| Weight | 0.1 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
