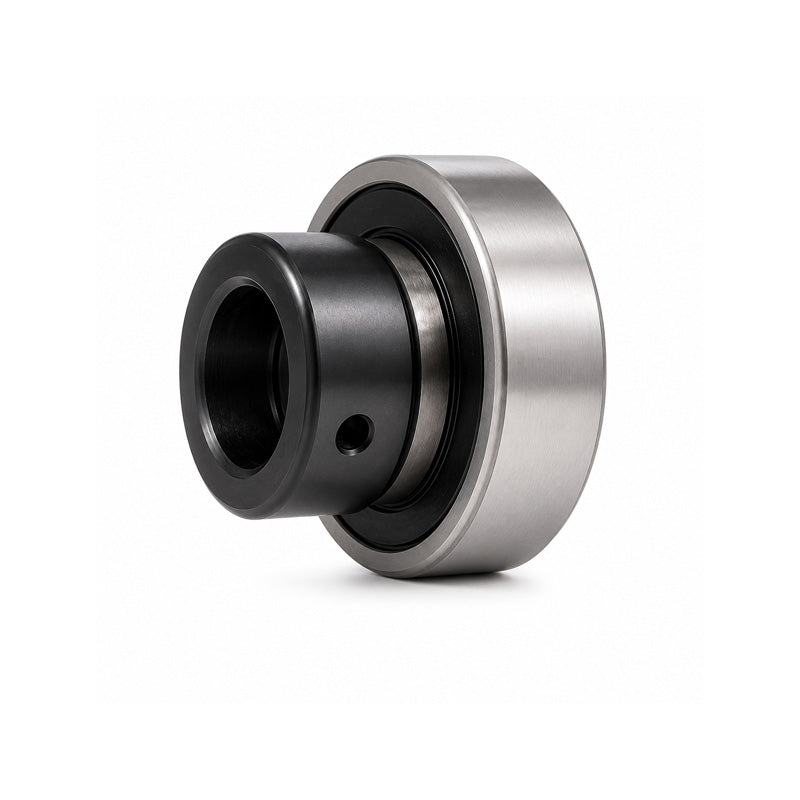

• CSA212 Metric Bearing Insert with Locking Collar 60mm Bore 110mm Outside Dia
1 1

SKU: CSA.212

CSA212 Metric Bearing Insert with Locking Collar 60mm Bore 110mm Outside Dia

CSA212 Metric Bearing Insert with Locking Collar 60mm Bore 110mm Outside Dia
Rs. 4,799.42
Rs. 4,799.42
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 4,271.48
19+ Rs. 4,031.51
29+ Rs. 3,983.52
39+ Rs. 3,935.52
49+ Rs. 3,887.53
74+ Rs. 3,839.54
99+ Rs. 3,599.57
199+ Rs. 3,551.57
249+ Rs. 3,503.58
499+ Rs. 3,455.58
999+ Rs. 3,359.59
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert has a parallel outer diameter and is typically fitted directly into the machine frame
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Outside Diameter:
110mm
Style:
CSA
Technical
d 60mm
Be 24mm
D 110mm
z 33.4mm
n 12mm
m 21.4mm
Bi 53.1mm
k 84.2mm
H 22.3mm
G 8mm
h 8mm
Grub screw M10X1.0
Weight 1.3 kg
Dynamic load 4850 kgf
Static load 2960 kgf
