• CSA209 Metric Bearing Insert with Locking Collar 45mm Bore 85mm Outside Dia
1 1

SKU: CSA.209

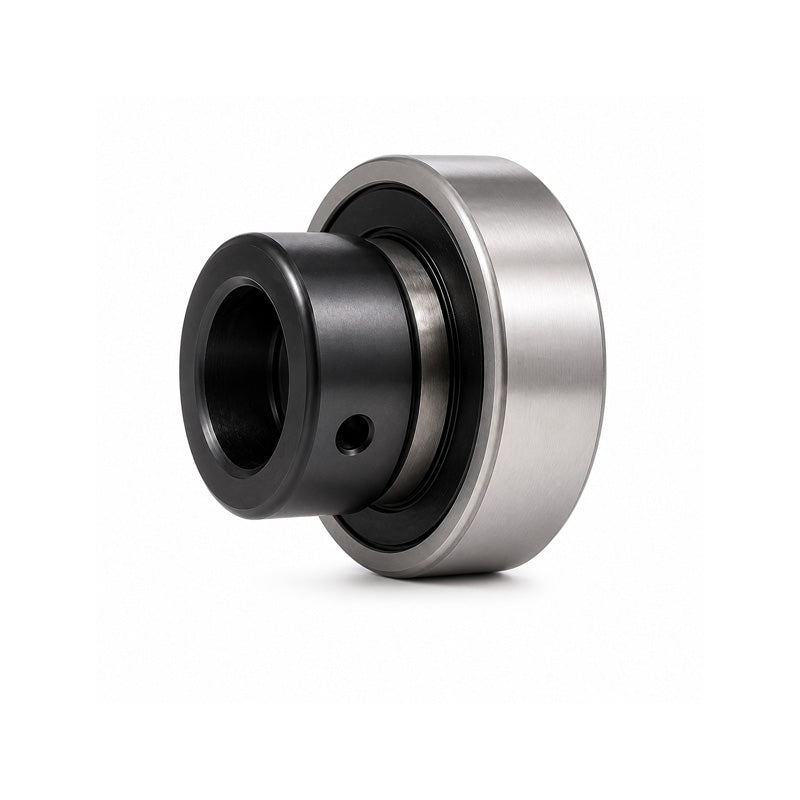

CSA209 Metric Bearing Insert with Locking Collar 45mm Bore 85mm Outside Dia

CSA209 Metric Bearing Insert with Locking Collar 45mm Bore 85mm Outside Dia
Rs. 3,046.85
Rs. 3,046.85
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 2,711.70
19+ Rs. 2,559.35
29+ Rs. 2,528.89
39+ Rs. 2,498.42
49+ Rs. 2,467.95
74+ Rs. 2,437.48
99+ Rs. 2,285.14
199+ Rs. 2,254.67
249+ Rs. 2,224.20
499+ Rs. 2,193.73
999+ Rs. 2,132.80
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert has a parallel outer diameter and is typically fitted directly into the machine frame
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Style:
CSA
Technical
d 45mm
Be 19mm
D 85mm
z 30.2mm
n 9.5mm
m 20.7mm
Bi 43.7mm
k 63.5mm
H 18.3mm
G 6.5mm
h 6.3mm
Grub screw M8X1.0
Weight 0.73 kg
Dynamic load 3300 kgf
Static load 2100 kgf
