SKU: CSA.206-19

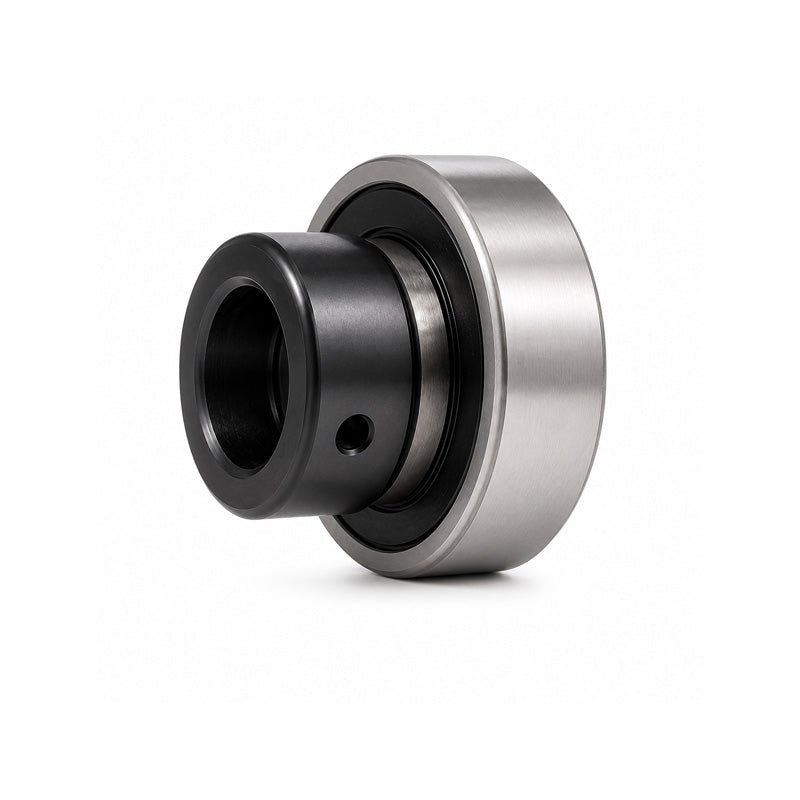

CSA206-19 Imperial Bearing Insert with Locking Collar 1-3/16 inch Bore 62mm Outside Dia
CSA206-19 Imperial Bearing Insert with Locking Collar 1-3/16 inch Bore 62mm Outside Dia
Regular price
Rs. 1,083.04
Regular price
Sale price
Rs. 1,083.04
Taxes included.
In stock
Price Break
10+
Rs. 963.91
19+
Rs. 909.75
29+
Rs. 898.92
39+
Rs. 888.09
49+
Rs. 877.26
74+
Rs. 866.43
99+
Rs. 812.28
199+
Rs. 801.45
249+
Rs. 790.62
499+
Rs. 779.79
999+
Rs. 758.13
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm
- Style:
- CSA
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| Be | 16mm |
| D | 62mm |
| z | 23.8mm |
| n | 8mm |
| m | 15.8mm |
| Bi | 35.7mm |
| k | 44.5mm |
| H | 15.9mm |
| G | 6mm |
| h | 5mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.22 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
