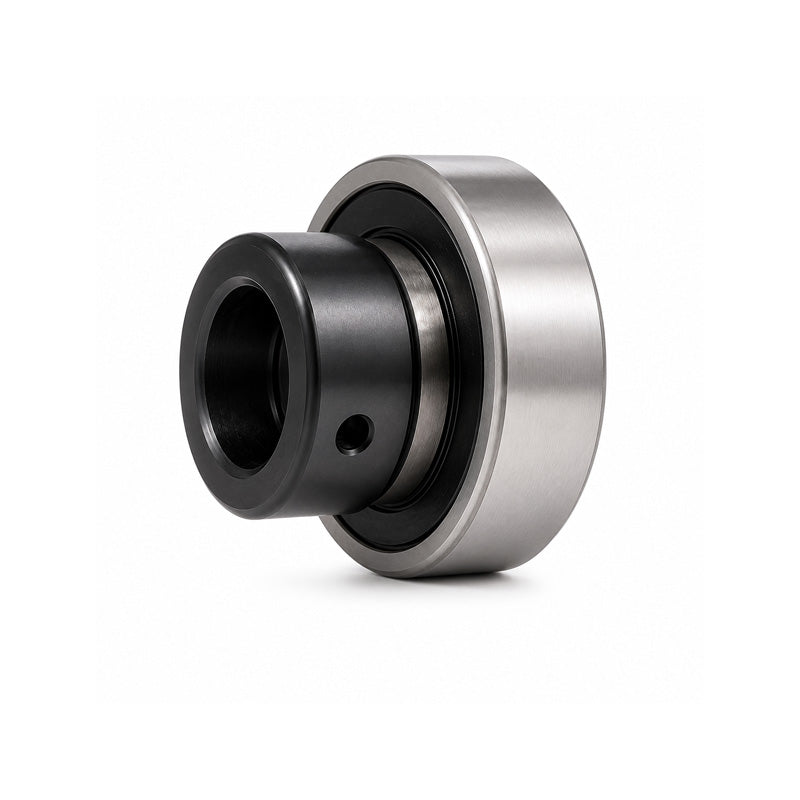

• CSA206-18 Imperial Bearing Insert with Locking Collar 1-1/8 inch Bore 62mm Outside Dia
1 1

SKU: CSA.206-18

CSA206-18 Imperial Bearing Insert with Locking Collar 1-1/8 inch Bore 62mm Outside Dia

CSA206-18 Imperial Bearing Insert with Locking Collar 1-1/8 inch Bore 62mm Outside Dia
Rs. 1,597.67
Rs. 1,597.67
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 1,421.93
19+ Rs. 1,342.04
29+ Rs. 1,326.07
39+ Rs. 1,310.09
49+ Rs. 1,294.11
74+ Rs. 1,278.14
99+ Rs. 1,198.25
199+ Rs. 1,182.28
249+ Rs. 1,166.30
499+ Rs. 1,150.32
999+ Rs. 1,118.37
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert has a parallel outer diameter and is typically fitted directly into the machine frame
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Outside Diameter:
62mm
Style:
CSA
Technical
d 1-1/8 inch
Be 16mm
D 62mm
z 23.8mm
n 8mm
m 15.8mm
Bi 35.7mm
k 44.5mm
H 15.9mm
G 6mm
h 5mm
Grub screw 1/4"-28UNF
Weight 0.22 kg
Dynamic load 1520 kgf
Static load 1020 kgf
