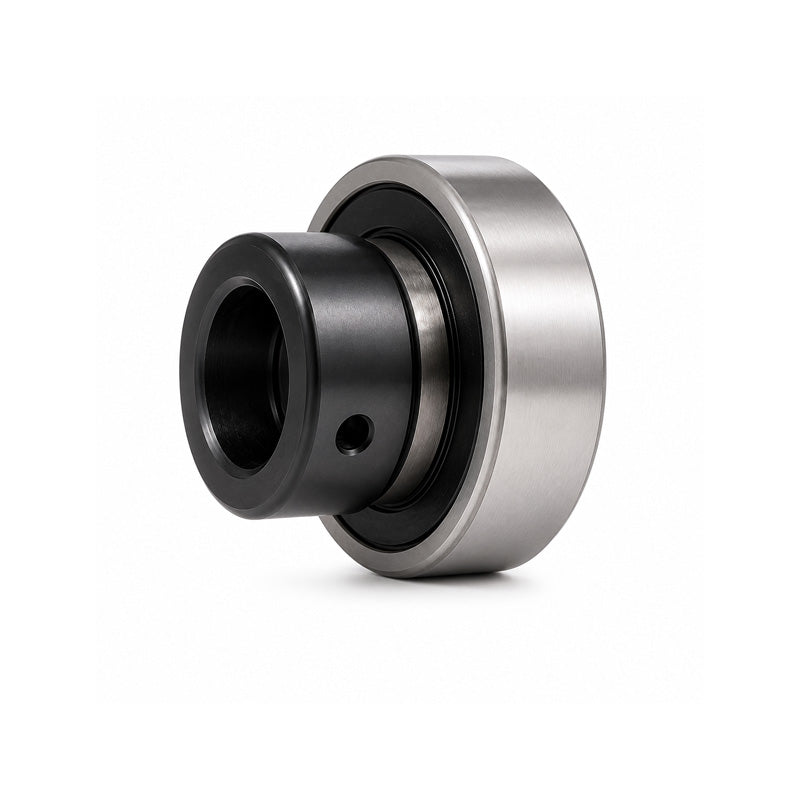

• CSA206 Metric Bearing Insert with Locking Collar 30mm Bore 62mm Outside Dia
1 1

SKU: CSA.206

CSA206 Metric Bearing Insert with Locking Collar 30mm Bore 62mm Outside Dia

CSA206 Metric Bearing Insert with Locking Collar 30mm Bore 62mm Outside Dia
Rs. 1,628.40
Rs. 1,628.40
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 1,449.28
19+ Rs. 1,367.86
29+ Rs. 1,351.57
39+ Rs. 1,335.29
49+ Rs. 1,319.00
74+ Rs. 1,302.72
99+ Rs. 1,221.30
199+ Rs. 1,205.02
249+ Rs. 1,188.73
499+ Rs. 1,172.45
999+ Rs. 1,139.88
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert has a parallel outer diameter and is typically fitted directly into the machine frame
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
62mm
Style:
CSA
Technical
d 30mm
Be 16mm
D 62mm
z 23.8mm
n 8mm
m 15.8mm
Bi 35.7mm
k 44.5mm
H 15.9mm
G 6mm
h 5mm
Grub screw M8X1.0
Weight 0.3 kg
Dynamic load 1520 kgf
Static load 1020 kgf
