SKU: CSA.205-14

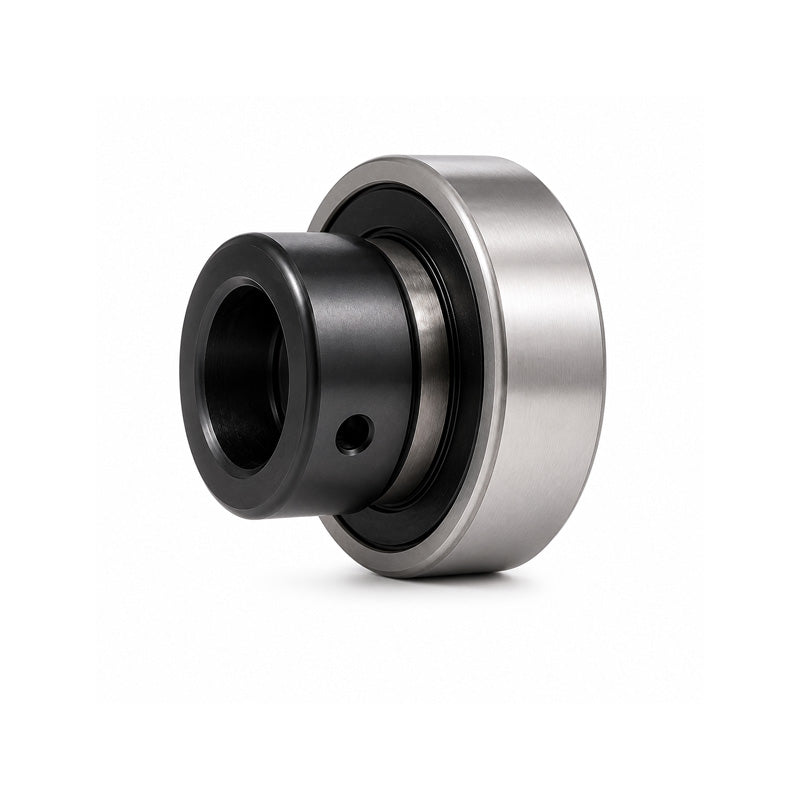

CSA205-14 Imperial Bearing Insert with Locking Collar 7/8 inch Bore 52mm Outside Dia
CSA205-14 Imperial Bearing Insert with Locking Collar 7/8 inch Bore 52mm Outside Dia
Regular price
Rs. 1,261.32
ex VAT
Regular price
Sale price
Rs. 1,261.32
ex VAT
In stock
Price Break
10+
Rs. 1,122.57
19+
Rs. 1,059.51
29+
Rs. 1,046.90
39+
Rs. 1,034.28
49+
Rs. 1,021.67
74+
Rs. 1,009.06
99+
Rs. 945.99
199+
Rs. 933.38
249+
Rs. 920.76
499+
Rs. 908.15
999+
Rs. 882.92
Couldn't load pickup availability
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Style:
- CSA
- Type:
- Parallel Outer
Technical
Technical
| d | 7/8 inch |
|---|---|
| Be | 14mm |
| D | 52mm |
| z | 21.5mm |
| n | 7.0mm |
| m | 14.5mm |
| Bi | 31mm |
| k | 33.3mm |
| H | 13.5mm |
| G | 5mm |
| h | 3.9mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.22 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
