SKU: CSA.205

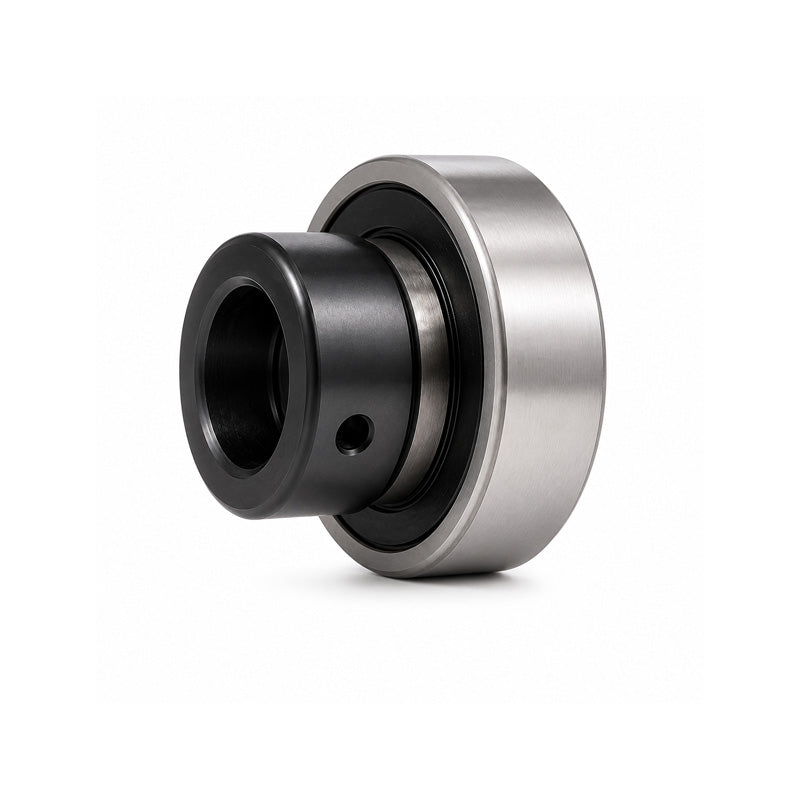

CSA205 Metric Bearing Insert with Locking Collar 25mm Bore 52mm Outside Dia

Name: CSA205 Metric Bearing Insert with Locking Collar 25mm Bore 52mm Outside Dia
Brand: Gen
SKU: CSA.205
Price: 1324.99 INR
Availability: InStock

Rs. 1,324.99

Sale Sold out

Taxes included.

In stock

Price Break

10+ Rs. 1,179.24

19+ Rs. 1,112.99

29+ Rs. 1,099.74

39+ Rs. 1,086.49

49+ Rs. 1,073.24

74+ Rs. 1,059.99

99+ Rs. 993.74

199+ Rs. 980.49

249+ Rs. 967.24

499+ Rs. 953.99

999+ Rs. 927.49

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert has a parallel outer diameter and is typically fitted directly into the machine frame
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 25mm
Outside Diameter:: 52mm
Style:: CSA

Technical

d	25mm
Be	15mm
D	52mm
z	21.5mm
n	7.5mm
m	14mm
Bi	31mm
k	38.1mm
H	13.5mm
G	5mm
h	3.9mm
Grub screw	M6X1.0
Weight	0.22 kg
Dynamic load	1100 kgf
Static load	710 kgf
