SKU: CSA.204-12

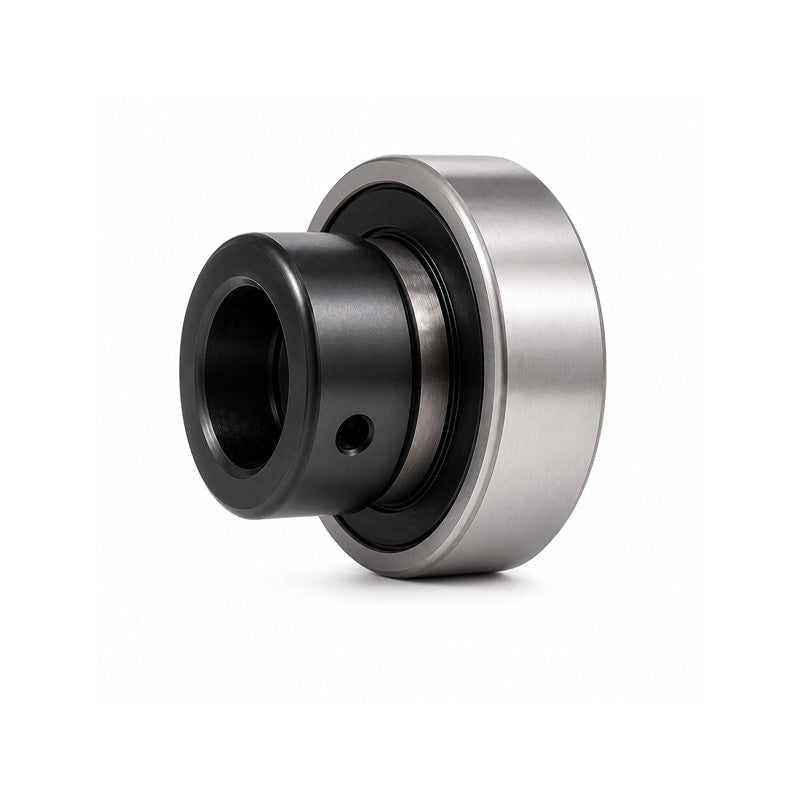

CSA204-12 Imperial Bearing Insert with Locking Collar 3/4 inch Bore 47mm Outside Dia
CSA204-12 Imperial Bearing Insert with Locking Collar 3/4 inch Bore 47mm Outside Dia
Regular price
Rs. 1,085.60
Regular price
Sale price
Rs. 1,085.60
Taxes included.
In stock
Price Break
10+
Rs. 966.18
19+
Rs. 911.90
29+
Rs. 901.05
39+
Rs. 890.19
49+
Rs. 879.34
74+
Rs. 868.48
99+
Rs. 814.20
199+
Rs. 803.34
249+
Rs. 792.49
499+
Rs. 781.63
999+
Rs. 759.92
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- CSA
Technical
Technical
| d | 3/4 inch |
|---|---|
| Be | 14mm |
| D | 47mm |
| z | 21.5mm |
| n | 7.0mm |
| m | 14.5mm |
| Bi | 31mm |
| k | 33.3mm |
| H | 13.5mm |
| G | 5mm |
| h | 3.9mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.15 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
