SKU: CSA.204

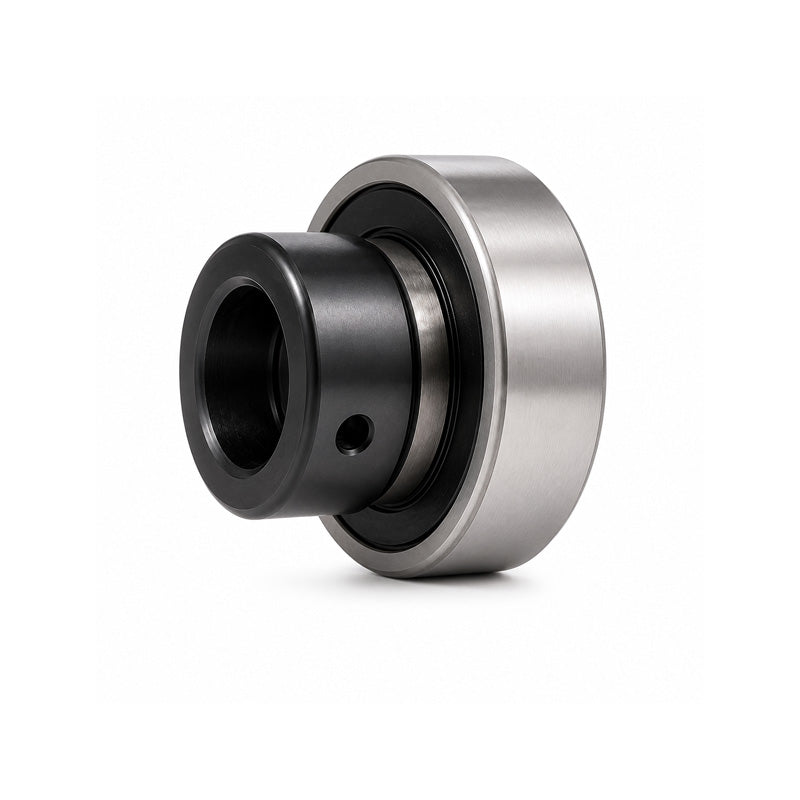

CSA204 Metric Bearing Insert with Locking Collar 20mm Bore 47mm Outside Dia
CSA204 Metric Bearing Insert with Locking Collar 20mm Bore 47mm Outside Dia
Regular price
Rs. 1,052.31
Regular price
Sale price
Rs. 1,052.31
Taxes included.
In stock
Price Break
10+
Rs. 936.56
19+
Rs. 883.94
29+
Rs. 873.42
39+
Rs. 862.89
49+
Rs. 852.37
74+
Rs. 841.85
99+
Rs. 789.23
199+
Rs. 778.71
249+
Rs. 768.19
499+
Rs. 757.66
999+
Rs. 736.62
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- CSA
Technical
Technical
| d | 20mm |
|---|---|
| Be | 14mm |
| D | 47mm |
| z | 21.5mm |
| n | 7.0mm |
| m | 14.5mm |
| Bi | 31mm |
| k | 33.3mm |
| H | 13.5mm |
| G | 5mm |
| h | 3.9mm |
| Grub screw | M6X1.0 |
| Weight | 0.15 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
