• CSA202-10 Imperial Bearing Insert with Locking Collar 5/8 inch Bore 40mm Outside Dia
1 1

SKU: CSA.202-10

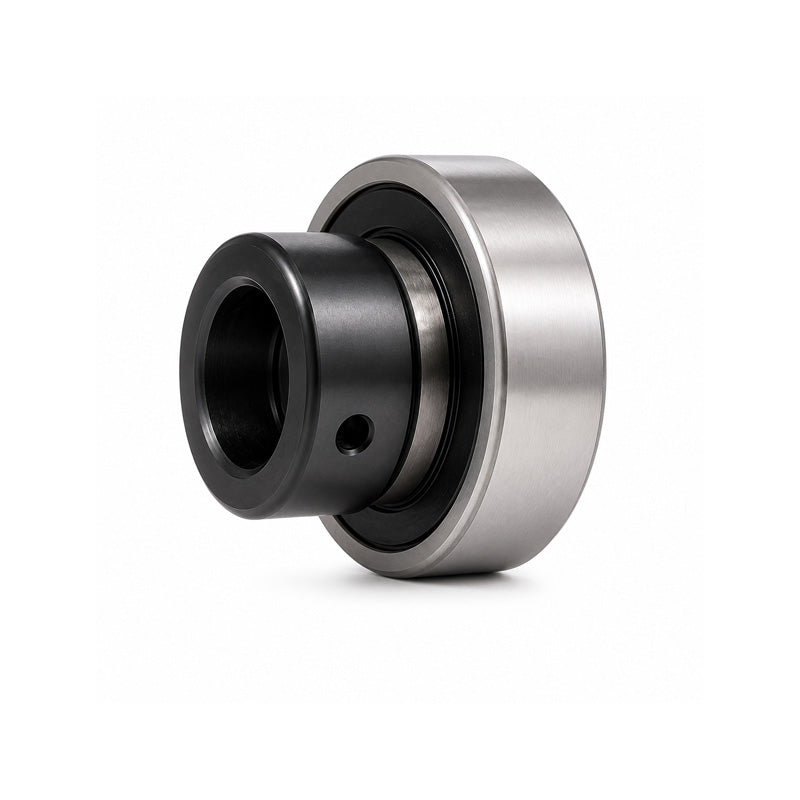

CSA202-10 Imperial Bearing Insert with Locking Collar 5/8 inch Bore 40mm Outside Dia

CSA202-10 Imperial Bearing Insert with Locking Collar 5/8 inch Bore 40mm Outside Dia
Rs. 1,317.31
Rs. 1,317.31
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 1,172.41
19+ Rs. 1,106.54
29+ Rs. 1,093.37
39+ Rs. 1,080.19
49+ Rs. 1,067.02
74+ Rs. 1,053.85
99+ Rs. 987.98
199+ Rs. 974.81
249+ Rs. 961.64
499+ Rs. 948.46
999+ Rs. 922.12
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert has a parallel outer diameter and is typically fitted directly into the machine frame
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
15.88mm = 0.625 (5/8) inch
Outside Diameter:
40mm
Style:
CSA
Technical
d 5/8 inch
Be 12mm
D 40mm
z 19.1mm
n 6mm
m 13.1mm
Bi 28.6mm
k 28.6mm
H 13.5mm
G 5mm
h 3.6mm
Grub screw 1/4"-28UNF
Weight 0.13 kg
Dynamic load 960 kgf
Static load 480 kgf
