SKU: CRP.MCK.4X12MM

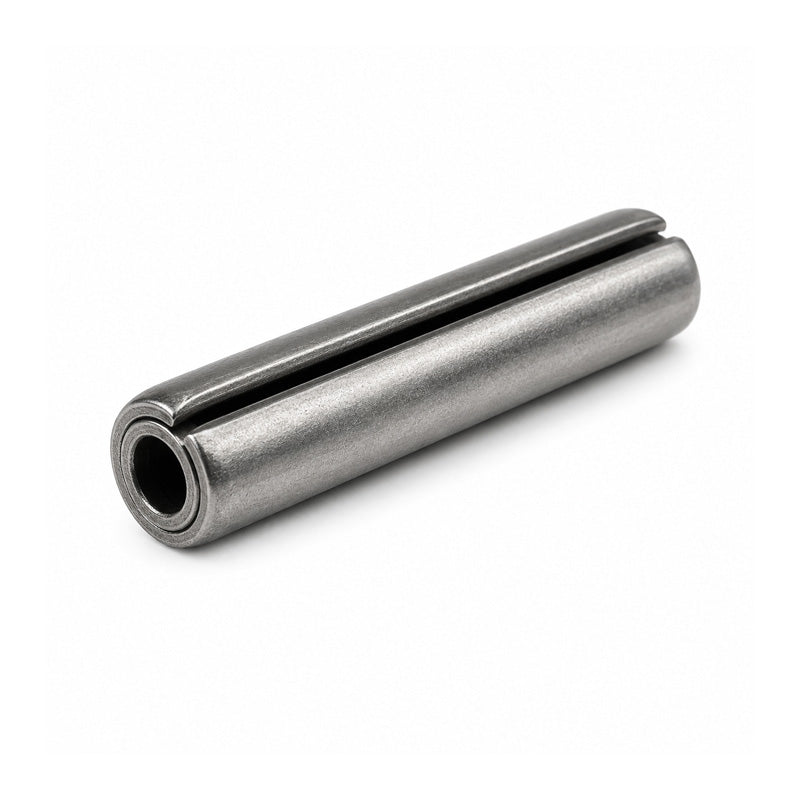

Metric Chrome Stainless Steel AISI 420 MCK Coiled Roll Pin 4x12mm with Plain Oiled Finish
Metric Chrome Stainless Steel AISI 420 MCK Coiled Roll Pin 4x12mm with Plain Oiled Finish
Regular price
Rs. 108.82
Regular price
Sale price
Rs. 108.82
Taxes included.
In stock
Price Break
10+
Rs. 59.85
20+
Rs. 45.70
50+
Rs. 32.65
100+
Rs. 27.21
500+
Rs. 21.76
1000+
Rs. 16.32
Description
Description
Coiled Chrome Stainless Steel Roll Pins with Plain Oiled Finish: These roll pins are manufactured from martensitic chrome stainless steel (DIN 7343 / AISI 420). Chrome stainless steel provides good corrosion resistance, excellent strength, and fatigue properties. The recommended service temperatures for chrome stainless steel pins is between -45 Deg C and 260 Deg C.
These pins are completed with a dry-to-the-touch plain oiled finish. The oil finish provides corrosion resistance, protecting the pins during storage and shipping.
Benefits: Excellent strength, good fatigue properties, wide temperature range
- Brand / Quality:
- Simply Coiled Roll Pins - High Quality
- Outside Diameter:
- 4mm
- Length:
- 12mm
- Material:
- Chrome Stainless Steel
- Grade:
- AISI 420
Technical
Technical
| Outside Diameter d1 | 4mm |
|---|---|
| Length L | 12mm |
| Length Tolerance | +/- 0.5mm |
| Chamfer Diameter B | 3.9mm (Approx) |
| Chamfer Length C | 1.1mm (Approx) |
| Material | Chrome Stainless Steel |
| Material Grade | AISI 420 |
| DIN / ISO | DIN7343 / ISO8750 |
| Finish | Plain Oiled Finish |
| Weight per pin | 0.0012kg |
