SKU: CRP.MBT.4X12MM

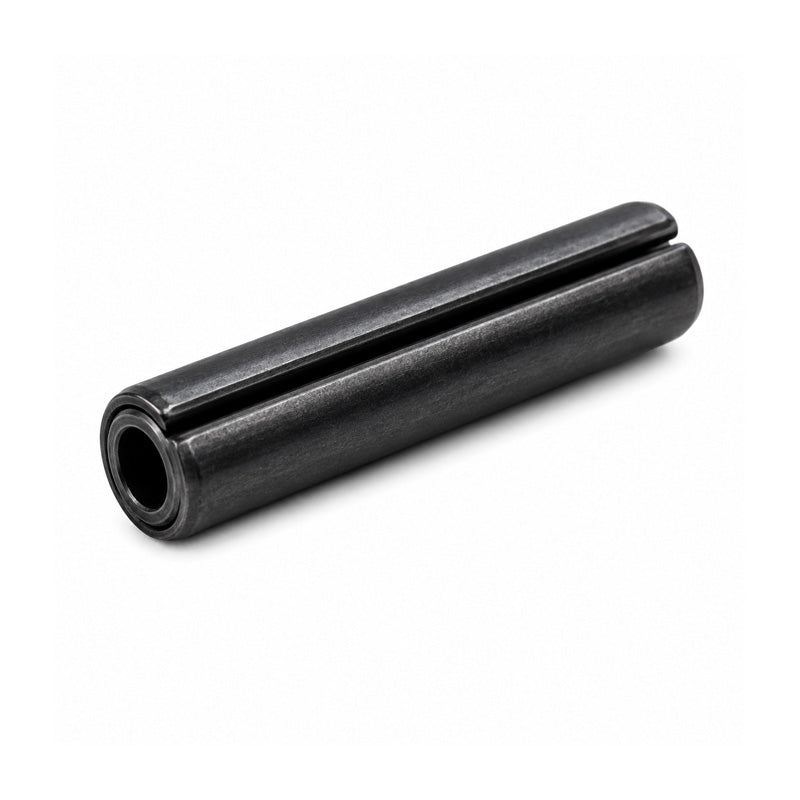

Metric Carbon Steel CS70 MBT Coiled Roll Pin 4x12mm with Zinc Plated Finish
Metric Carbon Steel CS70 MBT Coiled Roll Pin 4x12mm with Zinc Plated Finish
Regular price
Rs. 108.82
Regular price
Sale price
Rs. 108.82
Taxes included.
In stock
Price Break
10+
Rs. 54.41
20+
Rs. 37.00
50+
Rs. 22.85
100+
Rs. 19.04
500+
Rs. 11.97
1000+
Rs. 9.79
Description
Description
Coiled Carbon Steel Roll Pins with Zinc-Plated Finish: These roll pins are manufactured from high-grade carbon steel (DIN 1481 / CS70). High-carbon steel provides great shear strength and fatigue life. The recommended service temperatures for high-grade carbon steel pins is between -45 Deg C and 150 Deg C.
These pins are completed with an electroplated zinc finish which is primarily used for cosmetic purposes due to the bright silvery appearance of the finish. Additionally, the finish also prevents galvanic corrosion.
Benefits: High shear strength, good fatigue life, protection against galvanic corrosion
- Brand / Quality:
- Simply Coiled Roll Pins - High Quality
- Outside Diameter:
- 4mm
- Length:
- 12mm
- Material:
- Carbon Steel
- Grade:
- CS70
Technical
Technical
| Outside Diameter d1 | 4mm |
|---|---|
| Length L | 12mm |
| Length Tolerance | +/- 0.5mm |
| Chamfer Diameter B | 3.9mm (Approx) |
| Chamfer Length C | 1.1mm (Approx) |
| Material | Carbon Steel |
| Material Grade | CS70 |
| DIN / ISO | DIN7343 / ISO8750 |
| Finish | Zinc Plated Finish |
| Weight per pin | 0.0012kg |
