SKU: CRP.HCK.3/16X1-1/8IN

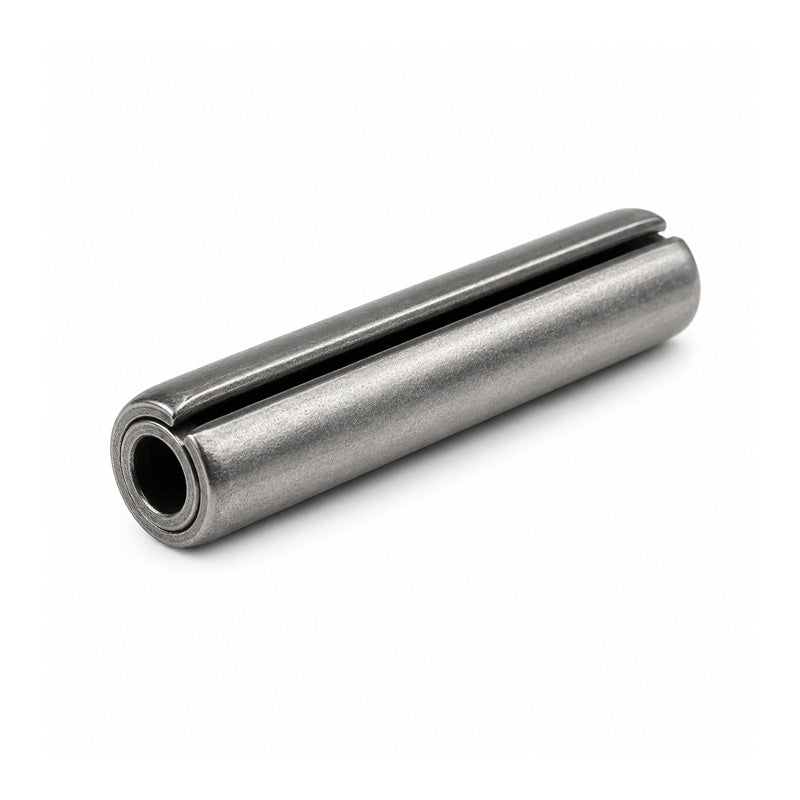

Imperial Chrome Stainless Steel AISI 420 HCK Coiled Roll Pin 3/16x1-1/8 inch with Plain Oiled Finish
Imperial Chrome Stainless Steel AISI 420 HCK Coiled Roll Pin 3/16x1-1/8 inch with Plain Oiled Finish
Regular price
Rs. 152.34
Regular price
Sale price
Rs. 152.34
Taxes included.
In stock
Price Break
5+
Rs. 106.64
10+
Rs. 91.40
20+
Rs. 83.79
50+
Rs. 76.17
100+
Rs. 60.94
500+
Rs. 53.32
1000+
Rs. 45.70
Description
Description
Coiled Chrome Stainless Steel Roll Pins with Plain Oiled Finish: These roll pins are manufactured from martensitic chrome stainless steel (DIN 7343 / AISI 420). Chrome stainless steel provides good corrosion resistance, excellent strength, and fatigue properties. The recommended service temperatures for chrome stainless steel pins is between -45 Deg C and 260 Deg C.
These pins are completed with a dry-to-the-touch plain oiled finish. The oil finish provides corrosion resistance, protecting the pins during storage and shipping.
Benefits: Excellent strength, good fatigue properties, wide temperature range
- Brand / Quality:
- Simply Coiled Roll Pins - High Quality
- Outside Diameter:
- 4.76mm = 0.187 (3/16) inch
- Length:
- 28.58mm = 1.125 (1-1/8) inch
- Material:
- Chrome Stainless Steel
- Grade:
- AISI 420
Technical
Technical
| Outside Diameter d1 | 3/16 inch |
|---|---|
| Length L | 1-1/8 inch |
| Length Tolerance | +/- 0.10 inch |
| Chamfer Diameter B | 0.185 inch (Approx) |
| Chamfer Length C | 0.055 inch (Approx) |
| Material | Chrome Stainless Steel |
| Material Grade | AISI 420 |
| DIN / ISO | DIN7343 / ISO8750 |
| Finish | Plain Oiled Finish |
| Weight per pin | 0.004kg |
