SKU: CRB30/83-INA

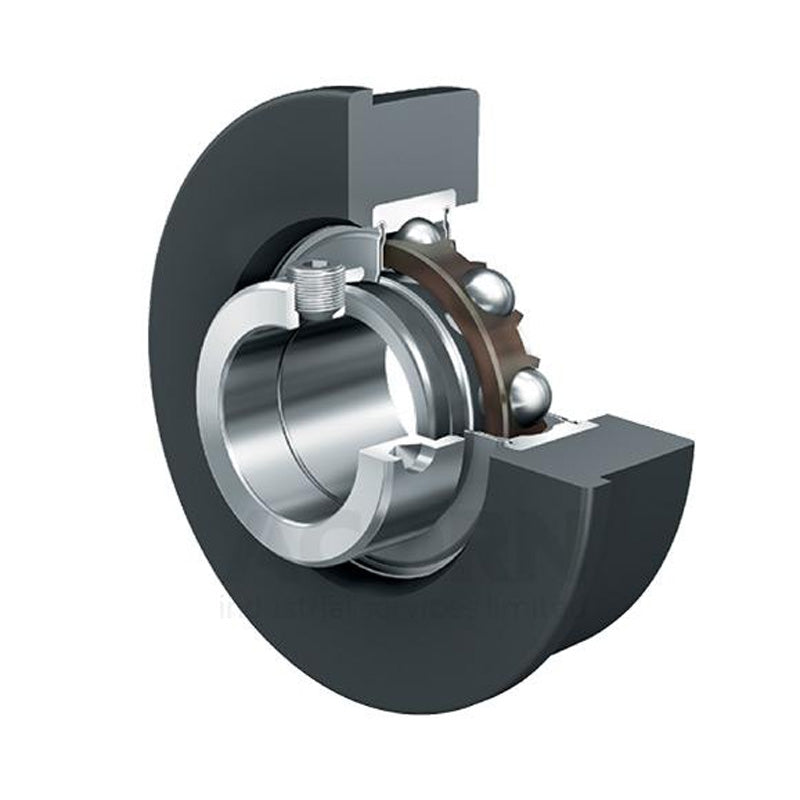

INA CRB30/83XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x83.6x40.7mm
INA CRB30/83XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x83.6x40.7mm
Regular price
Rs. 5,165.56
Regular price
Sale price
Rs. 5,165.56
Taxes included.
In stock
Price Break
10+
Rs. 4,597.35
19+
Rs. 4,339.07
29+
Rs. 4,287.41
39+
Rs. 4,235.76
49+
Rs. 4,184.10
74+
Rs. 4,132.45
99+
Rs. 3,874.17
199+
Rs. 3,822.51
249+
Rs. 3,770.86
499+
Rs. 3,719.20
999+
Rs. 3,615.89
Description
Description
|
INA CRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 83.6mm
- Width:
- 40.7mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 83.6mm |
| B2 | 40.7mm |
| B1 | 35.8mm |
| C | 28mm |
| C1 | 4.8mm |
| D1 | 87.4mm |
| D2 | 56mm |
| d3 max | 44mm |
| S2 | 14mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 80 deg |
| Rubber ring: load carrying capacity Cg | 1400 N |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Designation of rubber interliner | CR62/83 |
| Designation of bearing | RAE30-NPP |
| Weight | 0.41 kg |
