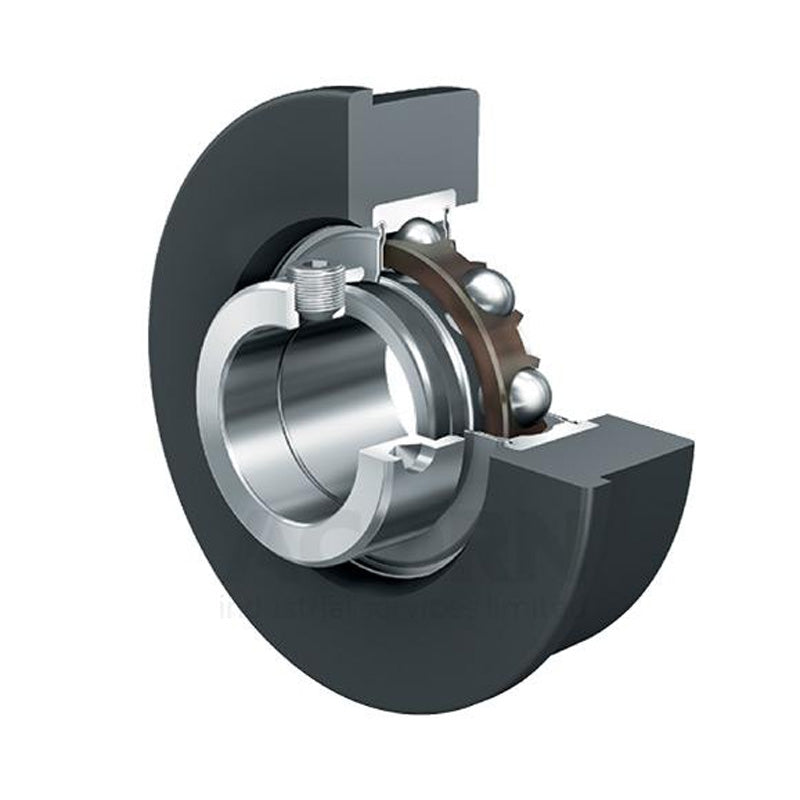

INA CRB20/83XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x83.6x36.2mm
INA CRB20/83XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x83.6x36.2mm
Regular price
Rs. 4,530.05
ex VAT
Regular price
Sale price
Rs. 4,530.05
ex VAT
In stock
Price Break
10+
Rs. 4,031.74
19+
Rs. 3,805.24
29+
Rs. 3,759.94
39+
Rs. 3,714.64
49+
Rs. 3,669.34
74+
Rs. 3,624.04
99+
Rs. 3,397.54
199+
Rs. 3,352.24
249+
Rs. 3,306.94
499+
Rs. 3,261.64
999+
Rs. 3,171.04
Couldn't load pickup availability
Description
Description
|
INA CRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 83.6mm
- Width:
- 36.2mm
- Type:
- Parallel Outer
Technical
Technical
| d | 20mm |
|---|---|
| D | 83.6mm |
| B2 | 36.2mm |
| B1 | 31mm |
| C | 25.4mm |
| C1 | 4.8mm |
| D1 | 87.4mm |
| D2 | 40mm |
| d3 max | 33mm |
| S2 | 12.7mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 80 deg |
| Rubber ring: load carrying capacity Cg | 750 N |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Designation of rubber interliner | CR47/83 |
| Designation of bearing | RAE20-NPP |
| Weight | 0.3 kg |
