SKU: CR.80038

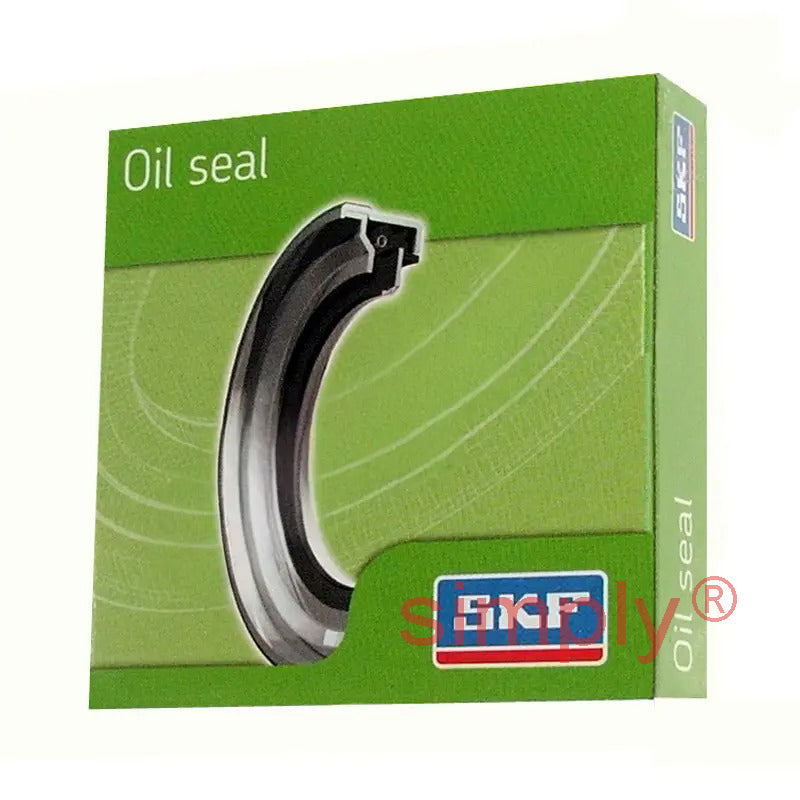

SKF CR80038 Double Lip Nitrile Rotary Shaft Seal 8x10x0.625 inch
In stock
Price Break
Couldn't load pickup availability
Description
|
SKF CRWHA1 Nitrile Oil Seals: These radial shaft seals have Waveseal lip design to reduce friction and heat generation. The seals have a double steel shell to simplify installation and provide a tight fit in the housing bore. The outside diameter of the seals is coated with Bore-Tite, a non-hardening, water-based polyacrylate sealant, which enables the seals to accommodate small imperfections in the housing bore. This seal is equipped with a non-contacting secondary lip to exclude dust and light contaminants. This seal also has a carbon steel garter spring. These seals are primarily designed for lubricant retention. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 203.2mm = 8 inch
- Outside Diameter:
- 254mm = 10 inch
- Width:
- 15.88mm = 0.625 (5/8) inch
- Style:
- CRWHA1
- Colour:
- Black
- Rubber Material:
- Nitrile
Technical
| Shaft Size not Inside Diameter (d) | 8 inch |
|---|---|
| Outside Diameter (D) | 10 inch |
| Width (b) | 0.625 inch |
