SKU: CR.33665

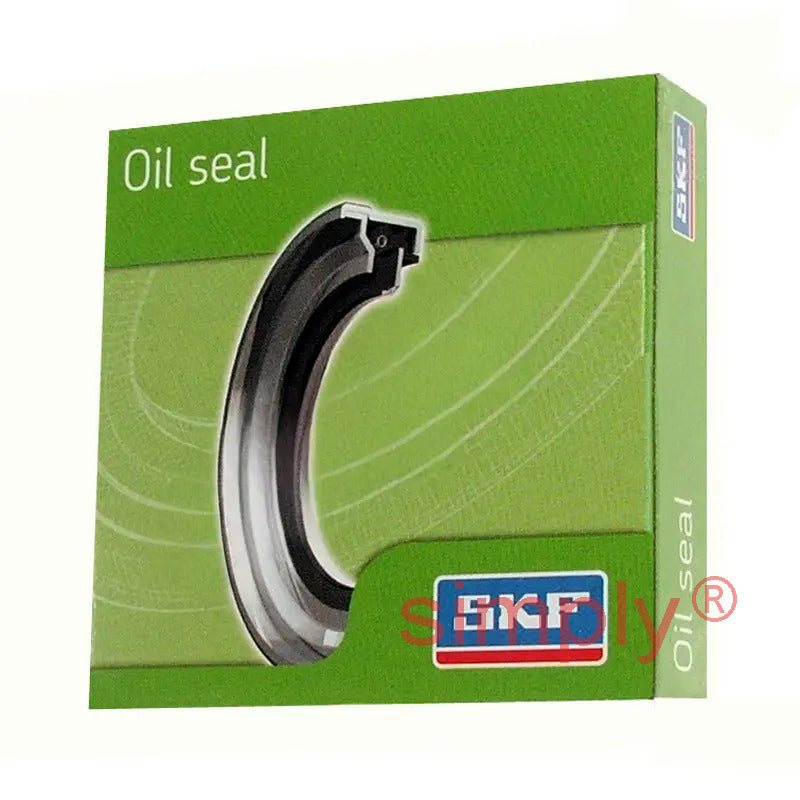

SKF CR33665 Double Lip Nitrile Rotary Shaft Seal 3.375x4.249x0.438 inch
In stock
Price Break
Description
|
SKF CRWHA1 Nitrile Oil Seals: These radial shaft seals have Waveseal lip design to reduce friction and heat generation. The seals have a double steel shell to simplify installation and provide a tight fit in the housing bore. The outside diameter of the seals is coated with Bore-Tite, a non-hardening, water-based polyacrylate sealant, which enables the seals to accommodate small imperfections in the housing bore. This seal is equipped with a non-contacting secondary lip to exclude dust and light contaminants. This seal also has a carbon steel garter spring. These seals are primarily designed for lubricant retention. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85.73mm = 3.375 (3-3/8) inch
- Outside Diameter:
- 107.92mm = 4.249 inch
- Width:
- 11.13mm = 0.438 inch
- Seals / Shields:
- Nitrile
- Style:
- CRWHA1
- Colour:
- Black
Technical
| Shaft Size not Inside Diameter (d) | 3.375 inch |
|---|---|
| Outside Diameter (D) | 4.249 inch |
| Width (b) | 0.438 inch |
