SKU: COT.BZP.7X71

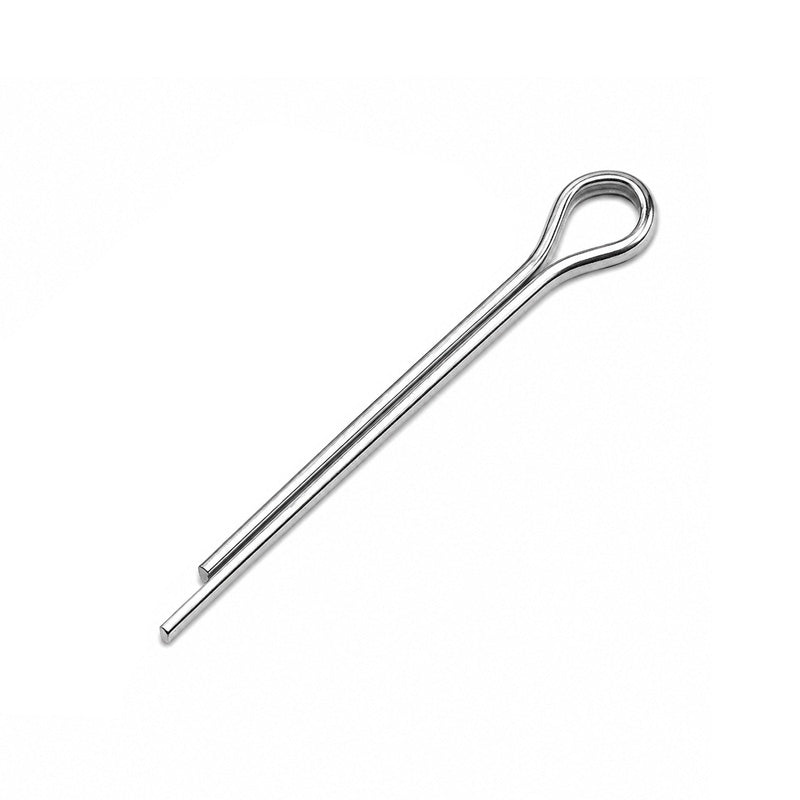

Metric Mild Steel Split Cotter Pin 7x71mm with Bright Zinc Plated Finish
Metric Mild Steel Split Cotter Pin 7x71mm with Bright Zinc Plated Finish
Regular price
Rs. 183.07
Regular price
Sale price
Rs. 183.07
Taxes included.
In stock
Price Break
5+
Rs. 128.15
10+
Rs. 109.84
20+
Rs. 100.69
50+
Rs. 91.54
100+
Rs. 73.23
500+
Rs. 64.07
1000+
Rs. 54.92
Description
Description
Mild Steel Split Cotter Pins with Bright Zinc Plating: Made from bright zinc plated mild steel these pins are ideally suited to both indoor or outdoor applications. Can be used for applications such as securing bearing lock nuts on shafts, tailboard/ramp retention on trailers, and many other instances where no permanent method of securing an item is required.
Benefits: Inexpensive, re-useable
- Brand / Quality:
- Simply Cotter Pins - High Quality
- Outside Diameter:
- 7mm
- Length:
- 71mm
- Material:
- Mild Steel
Technical
Technical
| Diameter (d-D) | 7mm |
|---|---|
| Length (L) | 71mm |
| a (max.) | 4.7mm |
| b ≈ | 12.3mm |
| c (max.) | 12.5mm |
| c (min.) | 12.45mm |
| d1 (max.) | 6.5mm |
| d1 (min.) | 6.7mm |
