SKU: COT.2X63

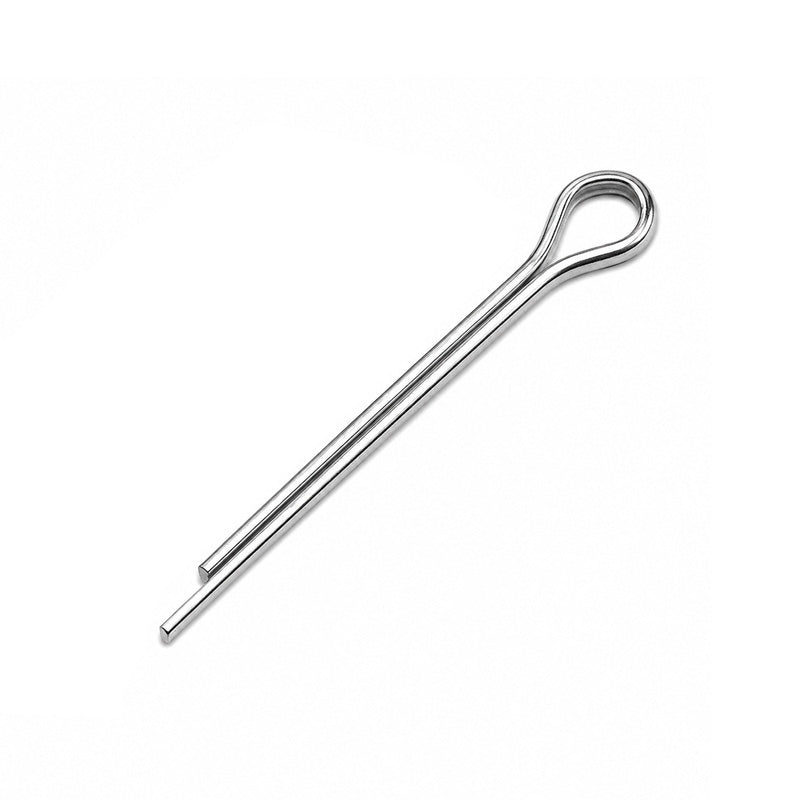

Metric Mild Steel Split Cotter Pin 2x63mm - Allow 2-3 Days
Metric Mild Steel Split Cotter Pin 2x63mm - Allow 2-3 Days
Regular price
Rs. 108.82
Regular price
Sale price
Rs. 108.82
Taxes included.
In stock
Price Break
10+
Rs. 54.41
20+
Rs. 37.00
50+
Rs. 22.85
100+
Rs. 19.04
500+
Rs. 11.97
1000+
Rs. 9.79
Description
Description
Mild Steel Split Cotter Pins: Made from Mild steel these pins are ideally suited to both indoor or outdoor applications. Can be used for applications such as securing bearing lock nuts on shafts, tailboard/ramp retention on trailers, and many other instances where no permanent method of securing an item is required.
Benefits: Inexpensive, re-useable
- Brand / Quality:
- Simply Cotter Pins - High Quality
- Outside Diameter:
- 2mm
- Length:
- 63mm
- Material:
- Mild Steel
Technical
Technical
| Diameter (d-D) | 2mm |
|---|---|
| Length (L) | 63mm |
| a (max.) | 2.5mm |
| b ≈ | 4mm |
| c (max.) | 3.6mm |
| c (min.) | 3.2mm |
| d1 (max.) | 1.8mm |
| d1 (min.) | 1.7mm |
