SKU: CNBH-40-SB

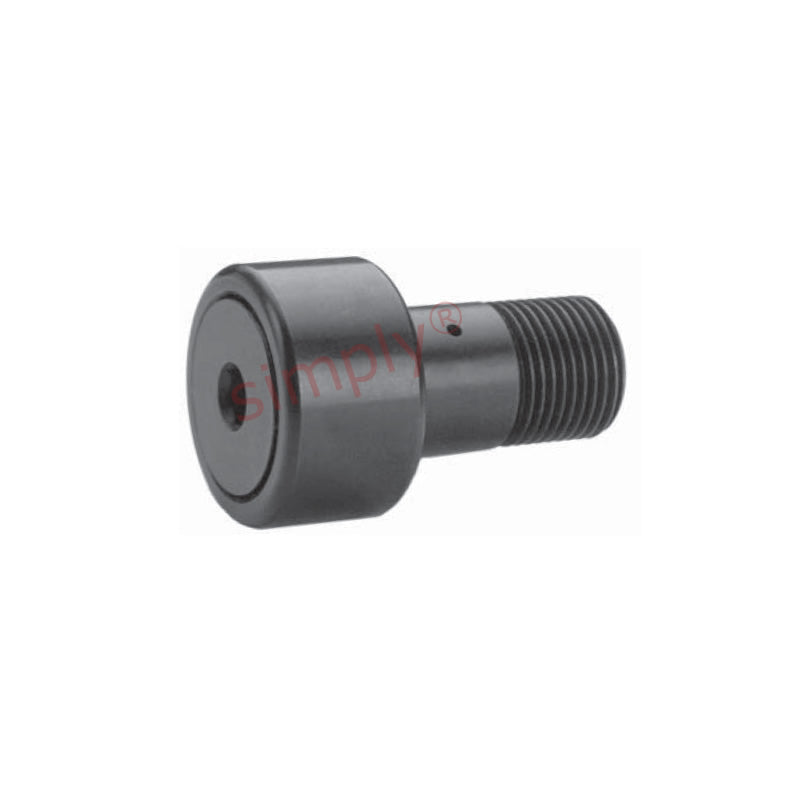

Major Brand CNBH40SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 1-1/4 inch Outside Diameter
Major Brand CNBH40SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 1-1/4 inch Outside Diameter
Regular price
Rs. 6,463.67
Regular price
Sale price
Rs. 6,463.67
Taxes included.
Equivalent to: CFH-1-1/4-SB H-40-LW HR-1-1/4-XB CRHSB-20
In stock
Price Break
10+
Rs. 5,752.67
19+
Rs. 5,429.48
29+
Rs. 5,364.85
39+
Rs. 5,300.21
49+
Rs. 5,235.57
74+
Rs. 5,170.94
99+
Rs. 4,847.75
199+
Rs. 4,783.12
249+
Rs. 4,718.48
499+
Rs. 4,653.84
999+
Rs. 4,524.57
Description
Description
|
Heavy Duty Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Equivalent: CFH-1-1/4-SB H-40-LW HR-1-1/4-XB CRHSB-20
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
- Pitch:
- UNF 3/4-16
Technical
Technical
| A | 1.25 inch |
|---|---|
| B | 0.75 inch |
| C | 0.75 inch |
| D | 1.25 inch |
| E | 0.625 inch |
| Thread class 2A F | 3/4-16 UNF |
| G | 5/16 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 63/64 inch |
| Recommended bore | 0.75 inch |
| Recommended torque | 1250 lbf-in |
| Max static capacity | 8500 lbs |
| Basic dynamic rating | 3930 lbs |
