SKU: CNB-64-S

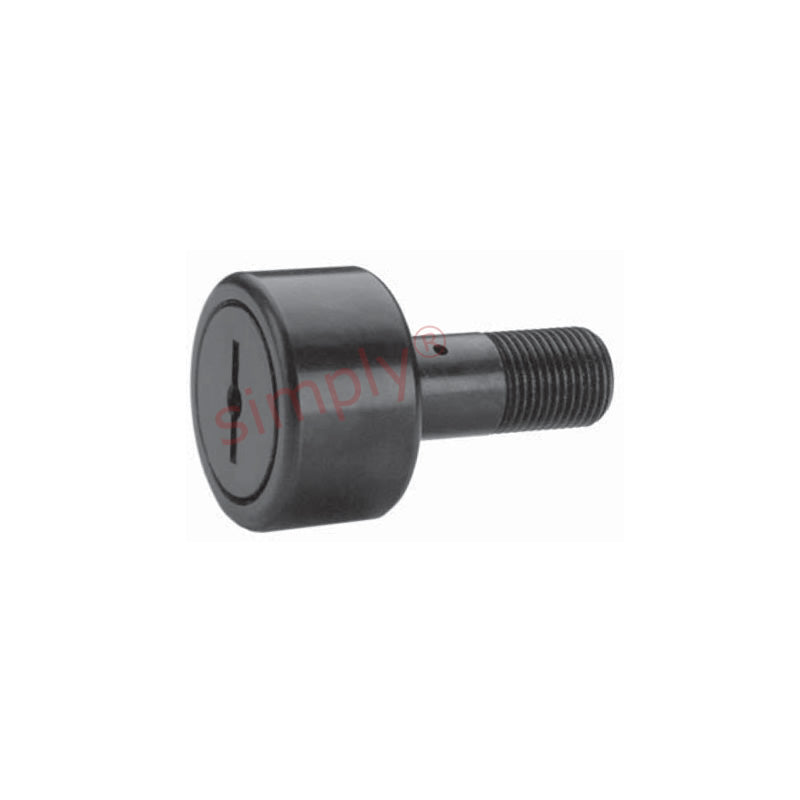

Major Brand CNB64S Sealed and Slotted Cylindrical Cam Follower 2 inch Outside Diameter
Major Brand CNB64S Sealed and Slotted Cylindrical Cam Follower 2 inch Outside Diameter
Regular price
Rs. 10,503.94
Regular price
Sale price
Rs. 10,503.94
Taxes included.
Equivalent to: CF-2-S S-64-L CR-2-X CRS-32
In stock
Price Break
10+
Rs. 9,348.51
19+
Rs. 8,823.31
29+
Rs. 8,718.27
39+
Rs. 8,613.23
49+
Rs. 8,508.19
74+
Rs. 8,403.15
99+
Rs. 7,877.96
199+
Rs. 7,772.92
249+
Rs. 7,667.88
499+
Rs. 7,562.84
999+
Rs. 7,352.76
Description
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Equivalent: CF-2-S S-64-L CR-2-X CRS-32
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
- Pitch:
- UNF 7/8-14
Technical
Technical
| A | 2 inch |
|---|---|
| B | 1.25 inch |
| C | 0.875 inch |
| D | 2 inch |
| E | 1 inch |
| Thread class 2A F | 7/8-14 UNF |
| G | 1/2 inch |
| H | 1/8 inch |
| J | 3/16 inch |
| Min boss diameter | 1-13/64 inch |
| Recommended bore | 0.875 inch |
| Recommended torque | 1500 lbf-in |
| Max static capacity | 10570 lbs |
| Basic dynamic rating | 8090 lbs |
