SKU: CNB-48-SB

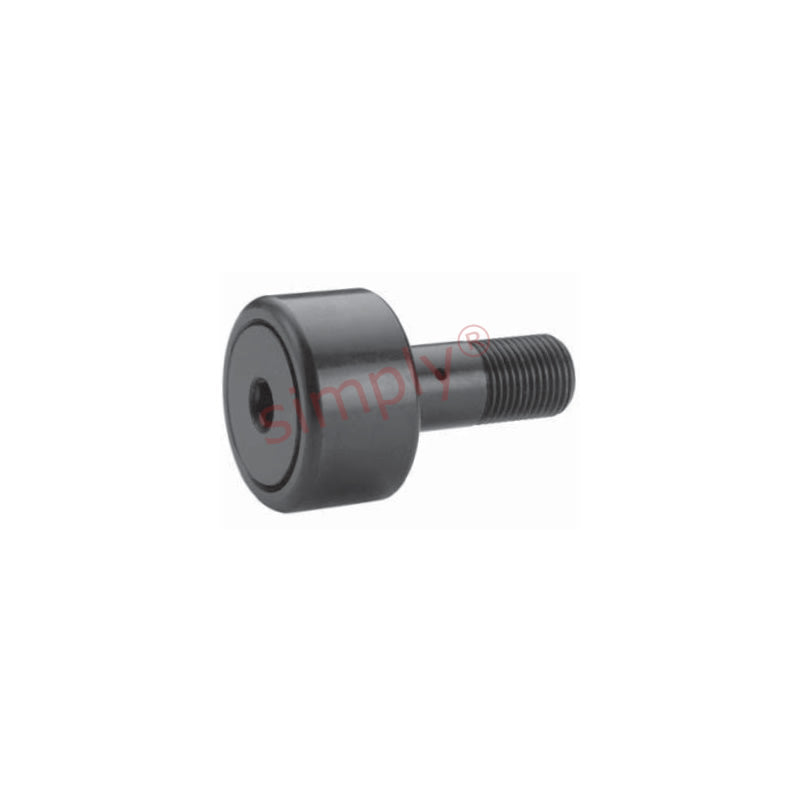

Major Brand CNB48SB Hex Head Sealed Cylindrical Cam Follower 1-1/2 inch Outside Diameter
Major Brand CNB48SB Hex Head Sealed Cylindrical Cam Follower 1-1/2 inch Outside Diameter
Regular price
Rs. 8,079.26
Regular price
Sale price
Rs. 8,079.26
Taxes included.
Equivalent to: CF-1-1/2-SB S-48-LW CR-1-1/2-XB CRSB-24 CR24VBUU
In stock
Price Break
10+
Rs. 7,190.54
19+
Rs. 6,786.58
29+
Rs. 6,705.79
39+
Rs. 6,624.99
49+
Rs. 6,544.20
74+
Rs. 6,463.41
99+
Rs. 6,059.45
199+
Rs. 5,978.65
249+
Rs. 5,897.86
499+
Rs. 5,817.07
999+
Rs. 5,655.48
Description
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Equivalent: CF-1-1/2-SB S-48-LW CR-1-1/2-XB CRSB-24 CR24VBUU
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 22.23mm = 0.875 (7/8) inch
- Pitch:
- UNF 5/8-18
Technical
Technical
| A | 1.5 inch |
|---|---|
| B | 0.875 inch |
| C | 0.625 inch |
| D | 1.5 inch |
| E | 0.75 inch |
| Thread class 2A F | 5/8-18 UNF |
| G | 3/8 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 57/64 inch |
| Recommended bore | 0.625 inch |
| Recommended torque | 650 lbf-in |
| Max static capacity | 5640 lbs |
| Basic dynamic rating | 4840 lbs |
