SKU: CNB-44-S

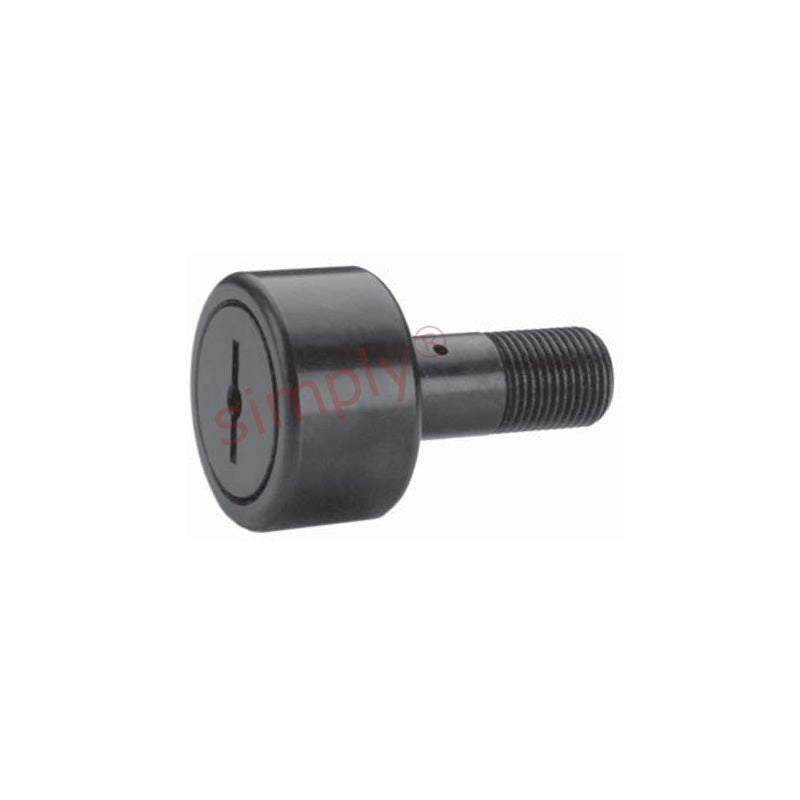

Major Brand CNB44S Sealed and Slotted Cylindrical Cam Follower 1-3/8 inch Outside Diameter
Major Brand CNB44S Sealed and Slotted Cylindrical Cam Follower 1-3/8 inch Outside Diameter
Regular price
Rs. 3,363.05
Regular price
Sale price
Rs. 3,363.05
Taxes included.
Equivalent to: CF-1-3/8-S S-44-L CR-1-3/8-X CRS-22
In stock
Price Break
10+
Rs. 2,993.11
19+
Rs. 2,824.96
29+
Rs. 2,791.33
39+
Rs. 2,757.70
49+
Rs. 2,724.07
74+
Rs. 2,690.44
99+
Rs. 2,522.29
199+
Rs. 2,488.66
249+
Rs. 2,455.03
499+
Rs. 2,421.40
999+
Rs. 2,354.14
Description
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Equivalent: CF-1-3/8-S S-44-L CR-1-3/8-X CRS-22
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
- Pitch:
- UNF 1/2-20
Technical
Technical
| A | 1.375 inch |
|---|---|
| B | 0.75 inch |
| C | 0.5 inch |
| D | 1.25 inch |
| E | 0.625 inch |
| Thread class 2A F | 1/2-20 UNF |
| G | 5/16 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 49/64 inch |
| Recommended bore | 0.5 inch |
| Recommended torque | 350 lbf-in |
| Max static capacity | 4250 lbs |
| Basic dynamic rating | 3930 lbs |
