SKU: CNB-40

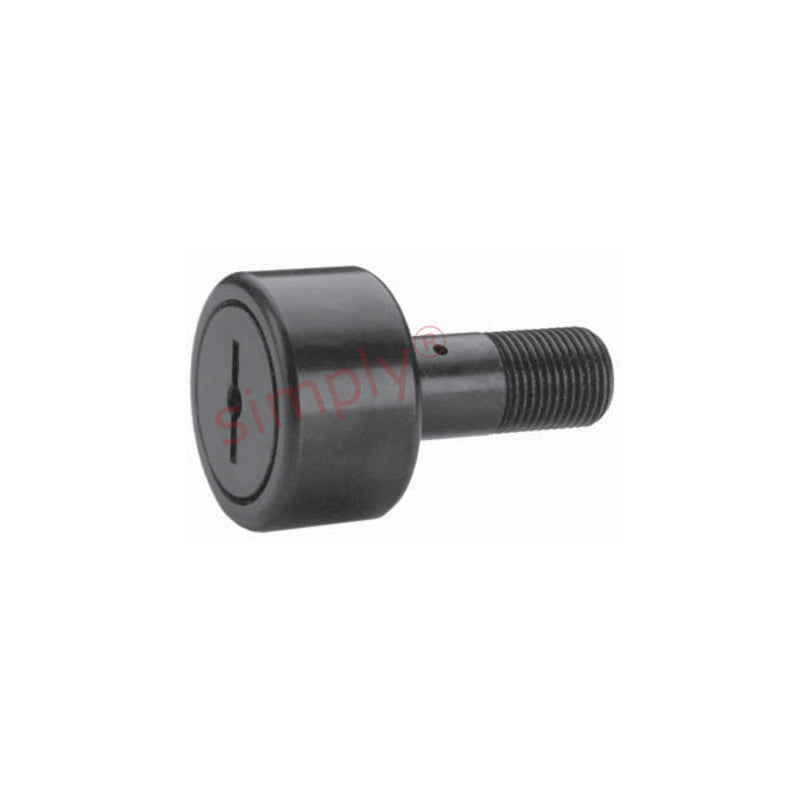

Major Brand CNB40 Slotted Cylindrical Cam Follower 1-1/4 inch Outside Diameter
Major Brand CNB40 Slotted Cylindrical Cam Follower 1-1/4 inch Outside Diameter
Regular price
Rs. 3,163.34
Regular price
Sale price
Rs. 3,163.34
Taxes included.
Equivalent to: CF-1-1/4 S-40 CR-1-1/4 CR-20
In stock
Price Break
10+
Rs. 2,815.37
19+
Rs. 2,657.21
29+
Rs. 2,625.57
39+
Rs. 2,593.94
49+
Rs. 2,562.31
74+
Rs. 2,530.67
99+
Rs. 2,372.51
199+
Rs. 2,340.87
249+
Rs. 2,309.24
499+
Rs. 2,277.60
999+
Rs. 2,214.34
Description
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Equivalent: CF-1-1/4 S-40 CR-1-1/4 CR-20
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
- Pitch:
- UNF 1/2-20
Technical
Technical
| A | 1.25 inch |
|---|---|
| B | 0.75 inch |
| C | 0.5 inch |
| D | 1.25 inch |
| E | 0.625 inch |
| Thread class 2A F | 1/2-20 UNF |
| G | 5/16 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 49/64 inch |
| Recommended bore | 0.5 inch |
| Recommended torque | 350 lbf-in |
| Max static capacity | 4250 lbs |
| Basic dynamic rating | 3930 lbs |
