SKU: CNB-24-S

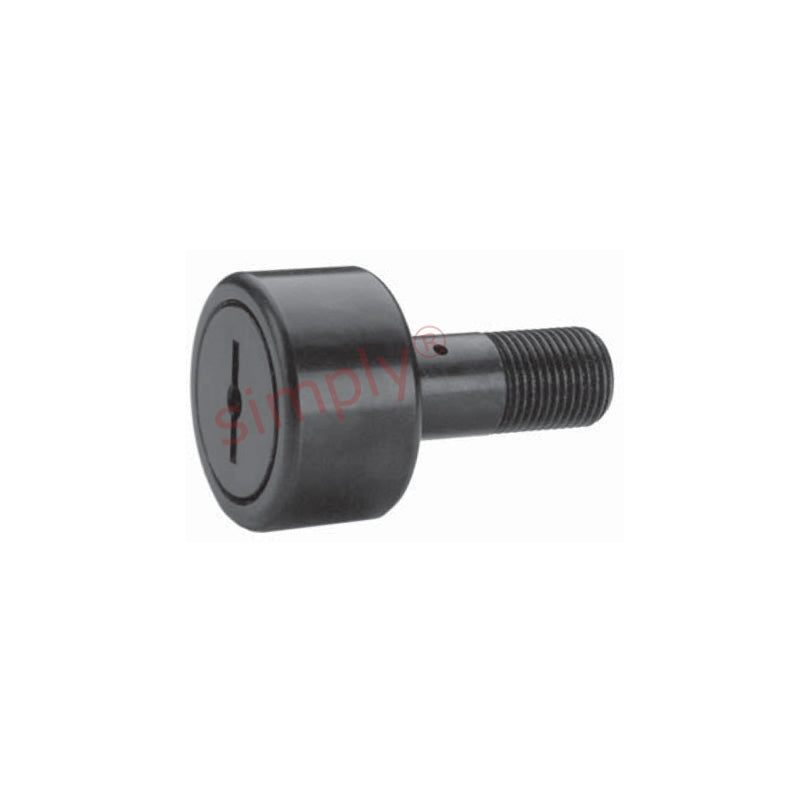

Major Brand CNB24S Sealed and Slotted Cylindrical Cam Follower 3/4 inch Outside Diameter
Major Brand CNB24S Sealed and Slotted Cylindrical Cam Follower 3/4 inch Outside Diameter
Regular price
Rs. 3,590.93
Regular price
Sale price
Rs. 3,590.93
Taxes included.
Equivalent to: CF-3/4-S S-24-L CR-3/4-X CRS-12
In stock
Price Break
10+
Rs. 3,195.93
19+
Rs. 3,016.38
29+
Rs. 2,980.47
39+
Rs. 2,944.56
49+
Rs. 2,908.65
74+
Rs. 2,872.74
99+
Rs. 2,693.20
199+
Rs. 2,657.29
249+
Rs. 2,621.38
499+
Rs. 2,585.47
999+
Rs. 2,513.65
Description
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Equivalent: CF-3/4-S S-24-L CR-3/4-X CRS-12
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
- Pitch:
- UNF 3/8-24
Technical
Technical
| A | 0.75 inch |
|---|---|
| B | 0.5 inch |
| C | 0.375 inch |
| D | 0.875 inch |
| E | 0.375 inch |
| Thread class 2A F | 3/8-24 UNF |
| G | 1/4 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 1/2 inch |
| Recommended bore | 0.375 inch |
| Recommended torque | 95 lbf-in |
| Max static capacity | 2065 lbs |
| Basic dynamic rating | 1660 lbs |
