SKU: CNB-20-NS
Major Brand CNB20NS Sealed and Slotted Cylindrical Cam Follower 5/8 inch Outside Diameter Allow 7-10 Days
Major Brand CNB20NS Sealed and Slotted Cylindrical Cam Follower 5/8 inch Outside Diameter Allow 7-10 Days
Regular price
Rs. 2,263.37
Regular price
Sale price
Rs. 2,263.37
Taxes included.
Equivalent to: CF-5/8-NS CR-5/8A-X CRS-10
In stock
Price Break
10+
Rs. 2,014.40
19+
Rs. 1,901.23
29+
Rs. 1,878.60
39+
Rs. 1,855.96
49+
Rs. 1,833.33
74+
Rs. 1,810.70
99+
Rs. 1,697.53
199+
Rs. 1,674.89
249+
Rs. 1,652.26
499+
Rs. 1,629.63
999+
Rs. 1,584.36
Description
Description
|

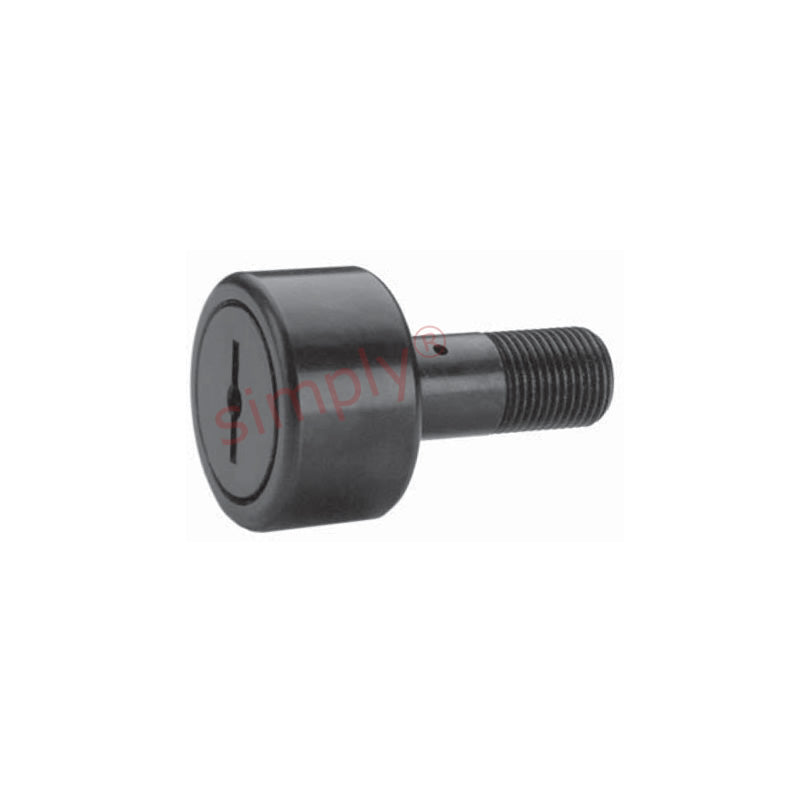

Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Equivalent: CF-5/8-NS CR-5/8A-X CRS-10
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Width:
- 10.32mm = 0.406 (13/32) inch
- Pitch:
- UNF 1/4-28
Technical
Technical
| A | 0.625 inch |
|---|---|
| B | 0.406 inch |
| C | 0.25 inch |
| D | 0.625 inch |
| E | 0.312 inch |
| Thread class 2A F | 1/4-28 UNF |
| J | 1/8 inch |
| Min boss diameter | 23/64 inch |
| Recommended bore | 0.25 inch |
| Recommended torque | 35 lbf-in |
| Max static capacity | 1215 lbs |
| Basic dynamic rating | 995 lbs |
