SKU: CNB-16-S

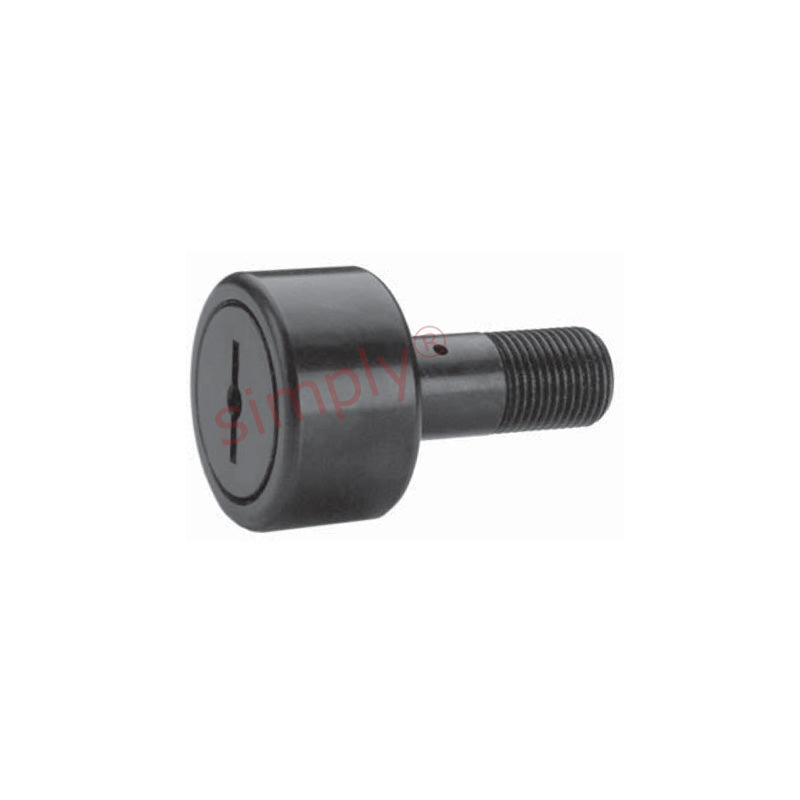

Major Brand CNB16S Sealed and Slotted Cylindrical Cam Follower 1/2 inch Outside Diameter
Major Brand CNB16S Sealed and Slotted Cylindrical Cam Follower 1/2 inch Outside Diameter
Regular price
Rs. 2,736.67
ex VAT
Regular price
Sale price
Rs. 2,736.67
ex VAT
Equivalent to: CF-1/2-S S-16-L CR-1/2-X CRS-8-1
In stock
Price Break
10+
Rs. 2,435.64
19+
Rs. 2,298.80
29+
Rs. 2,271.44
39+
Rs. 2,244.07
49+
Rs. 2,216.70
74+
Rs. 2,189.34
99+
Rs. 2,052.50
199+
Rs. 2,025.14
249+
Rs. 1,997.77
499+
Rs. 1,970.40
999+
Rs. 1,915.67
Couldn't load pickup availability
Description
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Equivalent: CF-1/2-S S-16-L CR-1/2-X CRS-8-1
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Width:
- 9.53mm = 0.375 (3/8) inch
- Pitch:
- UNF 10-32
Technical
Technical
| A | 0.5 inch |
|---|---|
| B | 0.375 inch |
| C | 0.19 inch |
| D | 0.625 inch |
| E | 0.25 inch |
| Thread class 2A F | 10-32 UNF |
| J | 1/8 inch |
| Min boss diameter | 19/64 inch |
| Recommended bore | 0.19 inch |
| Recommended torque | 15 lbf-in |
| Max static capacity | 1085 lbs |
| Basic dynamic rating | 930 lbs |
