SKU: CFPMR12-PBC

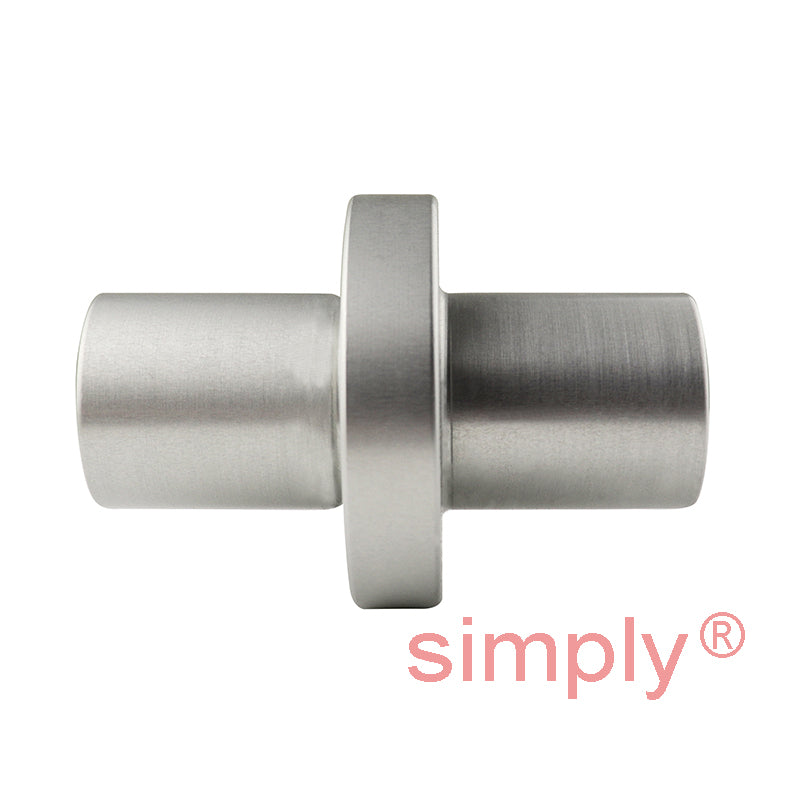

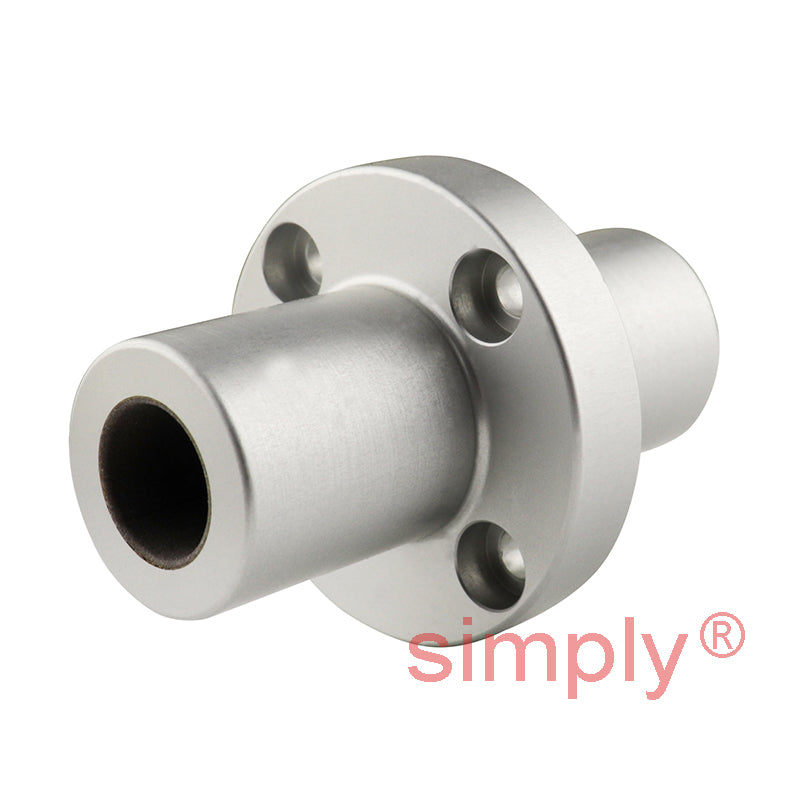

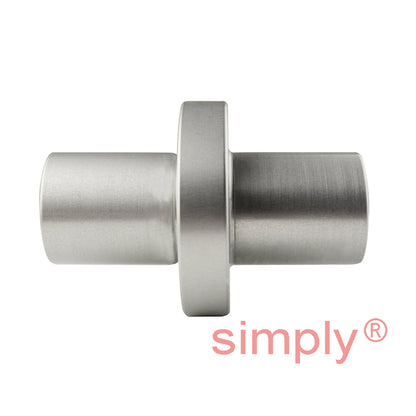

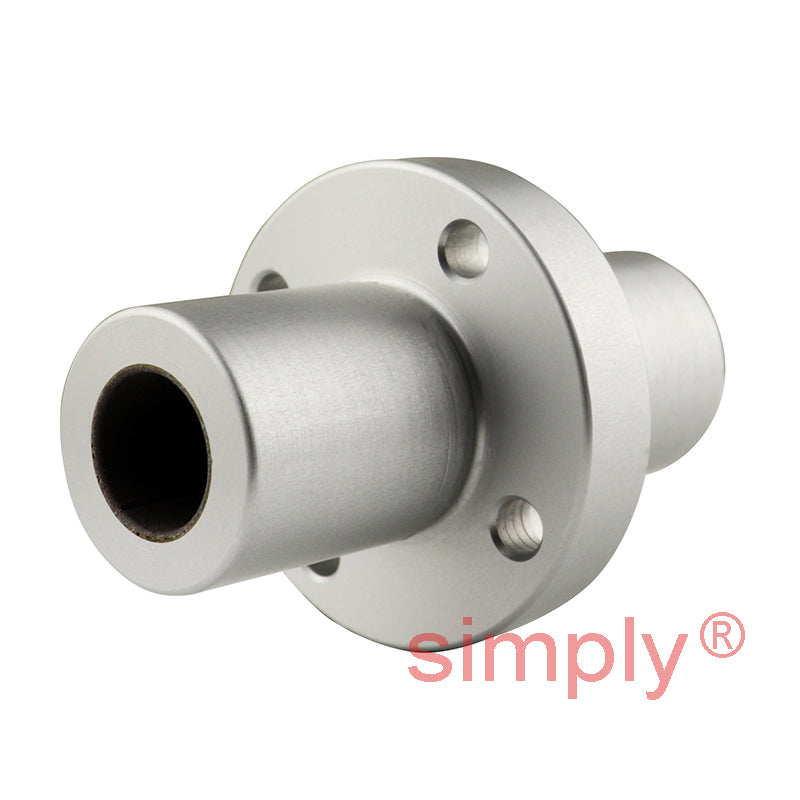

PBC CFPMR12 Metric Round Centre Flanged Double Ball Bushing with FrelonGold 12x41.8x61mm
PBC CFPMR12 Metric Round Centre Flanged Double Ball Bushing with FrelonGold 12x41.8x61mm
Regular price
Rs. 15,103.65
Regular price
Sale price
Rs. 15,103.65
Taxes included.
In stock
Price Break
10+
Rs. 13,442.25
19+
Rs. 12,687.07
29+
Rs. 12,536.03
39+
Rs. 12,384.99
49+
Rs. 12,233.96
74+
Rs. 12,082.92
99+
Rs. 11,327.74
199+
Rs. 11,176.70
249+
Rs. 11,025.66
499+
Rs. 10,874.63
999+
Rs. 10,572.56
Description
Description
PBC CFPMR Metric Round Centre Flanged Double Bearing with FrelonGold: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 41.8mm
- Length:
- 61mm
Technical
Technical

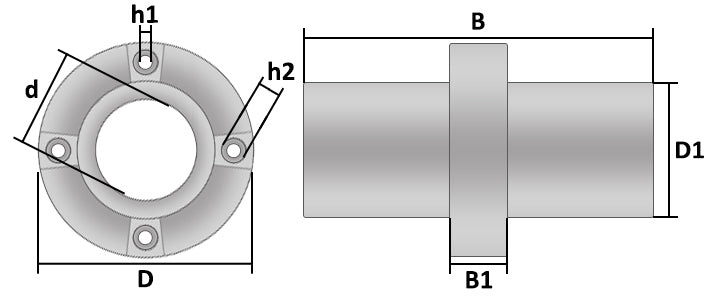

| Nominal Bore Size | 11.9mm |
|---|---|
| d | 12mm |
| D | 41.8mm |
| B | 61mm |
| D1 | 22mm |
| B1 | 8.8mm |
| h1 | 4.3mm |
| h2 | 7.2mm |
| Max Static Load | 7.976kN |
| Weight | 0.004kg |
