SKU: BR.283820

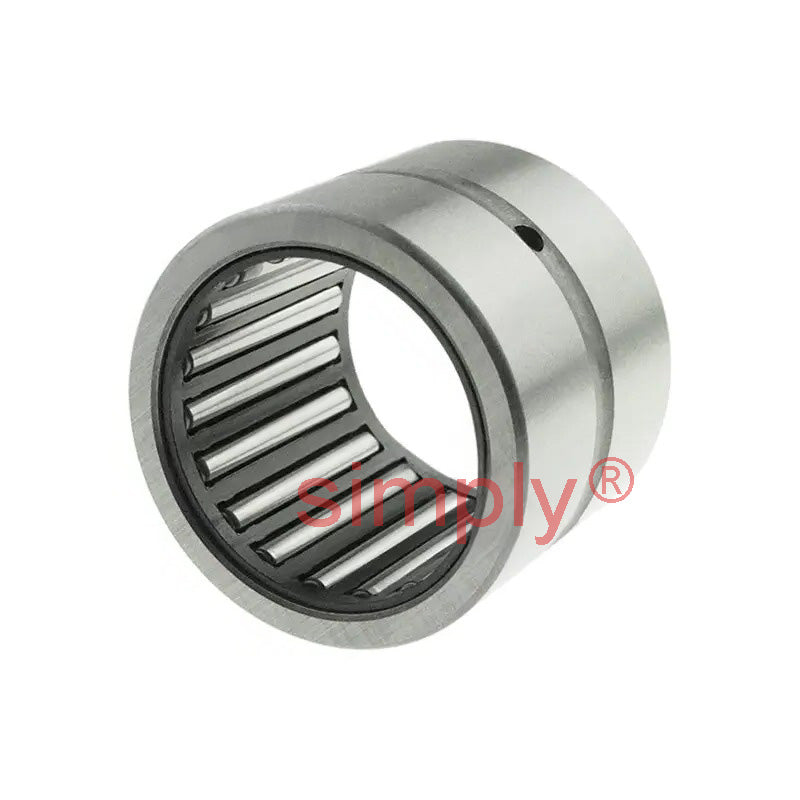

BR283820 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/4x2-3/8x1-1/4 inch
BR283820 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/4x2-3/8x1-1/4 inch
Regular price
Rs. 3,291.36
Regular price
Sale price
Rs. 3,291.36
Taxes included.
In stock
Price Break
10+
Rs. 2,929.31
19+
Rs. 2,764.74
29+
Rs. 2,731.83
39+
Rs. 2,698.92
49+
Rs. 2,666.00
74+
Rs. 2,633.09
99+
Rs. 2,468.52
199+
Rs. 2,435.61
249+
Rs. 2,402.69
499+
Rs. 2,369.78
999+
Rs. 2,303.95
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Fw | 1-3/4 inch |
|---|---|
| D | 2-3/8 inch |
| C | 1-1/4 inch |
| Dynamic Load Cor | 58900 N |
| Static Load Cr | 103000 N |
| Weight | 0.25 kg |
