SKU: BP3S-26-160-TRI-SNR

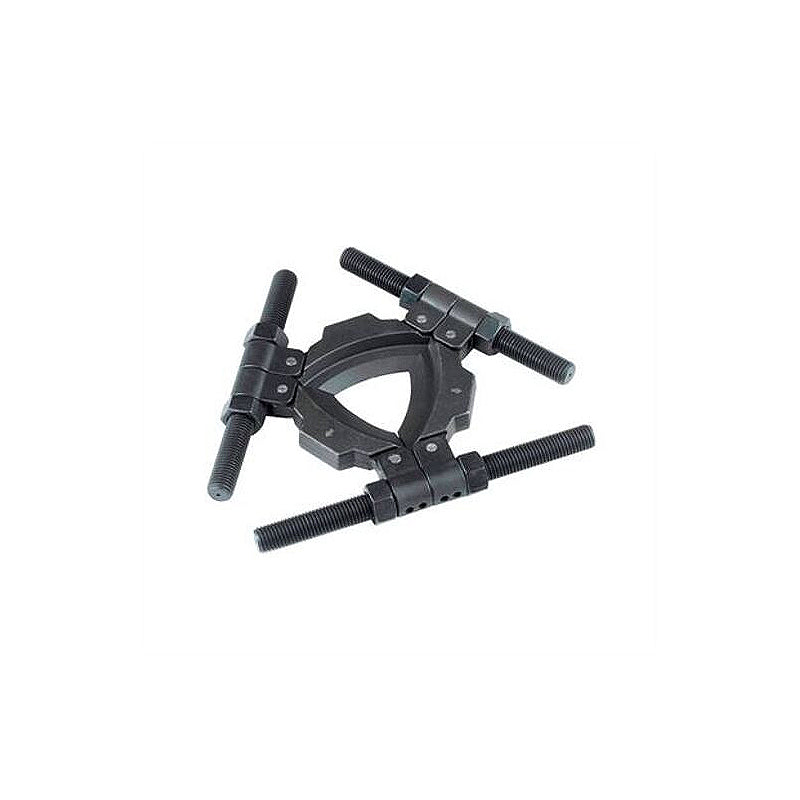

SNR BP3S 26-160 Tri-Section Pulling Plate 26x160x8mm - Allow 2-3 Days
SNR BP3S 26-160 Tri-Section Pulling Plate 26x160x8mm - Allow 2-3 Days
Regular price
Rs. 41,496.38
ex VAT
Regular price
Sale price
Rs. 41,496.38
ex VAT
In stock
Price Break
10+
Rs. 36,931.78
19+
Rs. 34,856.96
29+
Rs. 34,442.00
39+
Rs. 34,027.03
49+
Rs. 33,612.07
74+
Rs. 33,197.10
99+
Rs. 31,122.29
199+
Rs. 30,707.32
249+
Rs. 30,292.36
499+
Rs. 29,877.39
999+
Rs. 29,047.47
Couldn't load pickup availability
Description
Description
SNR BP3S Tri-Section Pulling Plates: These Tri-Section Pulling Plates offer a wide range of adjustments which are also available in four dimensions. Capable of holding parts with a diameter from 26mm up to 495mm. These Pulling Plates are to be used with the suitable SNR Three-Arm Puller which can be determined by required size and power.
Benefits: High-quality and Wide range of adjustment.
- Brand / Quality:
- SNR - High Quality
Technical
Technical

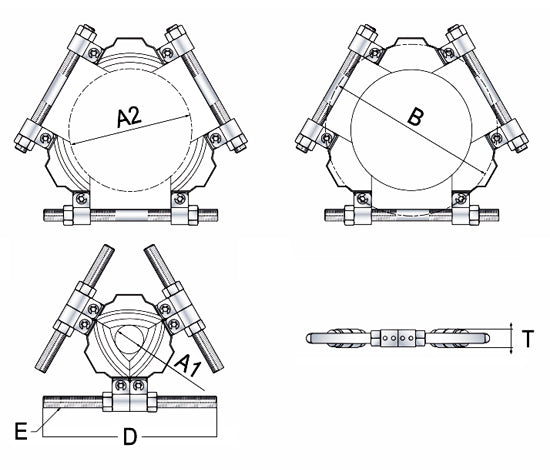

| Capacity | 4000kg |
|---|---|
| Minimum Shaft Diameter A1 | 26mm |
| Maximum Shaft Diameter | 160mm |
| Max Spread B | 216mm |
| Length D | 240mm |
| Thread E | 5/8 inch - 11 UNC |
| Thickness F | 8mm |
| Material | Forged Steel Alloy |
| Weight | 3.5kg |
