SKU: BK0509-EU

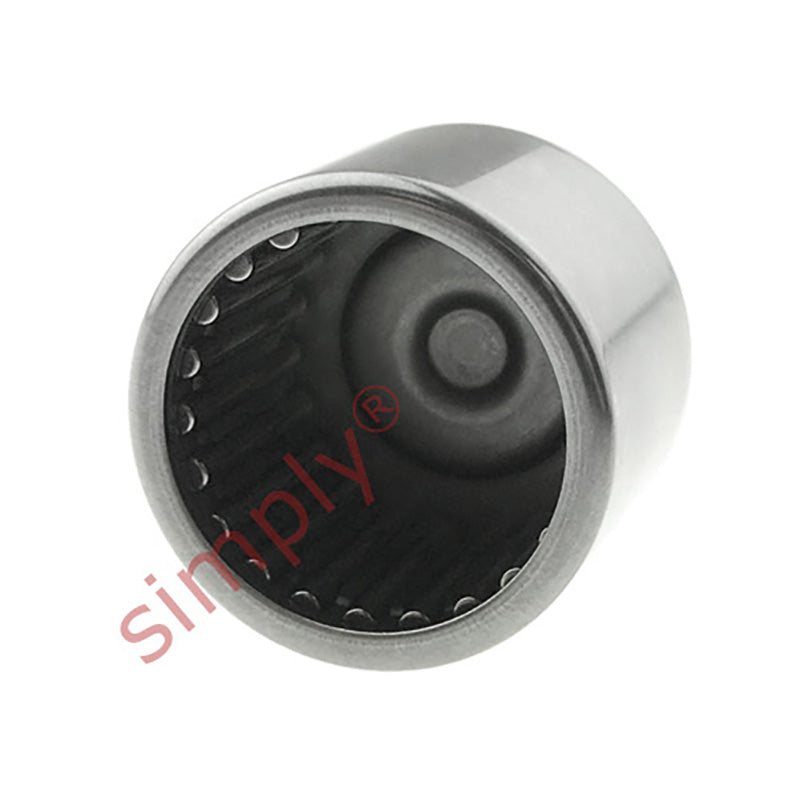

BK0509 Budget Drawn Cup Needle Roller Bearing with One Closed End 5x9x9mm
BK0509 Budget Drawn Cup Needle Roller Bearing with One Closed End 5x9x9mm
Regular price
Rs. 336.69
Regular price
Sale price
Rs. 336.69
Taxes included.
In stock
Price Break
10+
Rs. 299.65
19+
Rs. 282.82
29+
Rs. 279.45
39+
Rs. 276.09
49+
Rs. 272.72
74+
Rs. 269.35
99+
Rs. 252.52
199+
Rs. 249.15
249+
Rs. 245.78
499+
Rs. 242.42
999+
Rs. 235.68
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 9mm
- Width:
- 9mm
Technical
Technical
| Fw | 5mm |
|---|---|
| D | 9mm |
| C | 9mm |
| Dynamic load C | 2380 N |
| Static load Co | 2080 N |
| Fatigue load limit Pu | 220 N |
| Speed in grease | 22000 rpm |
| Speed in oil | 34000 rpm |
| C1 | 7.2mm |
| r1r2 min | 0.4mm |
| Da max | 5.3mm |
| ra max | 0.4mm |
| Seal | G5x9x2S |
| Weight | 2.1 g |
